In Stock Hot Product
ANE3-P14

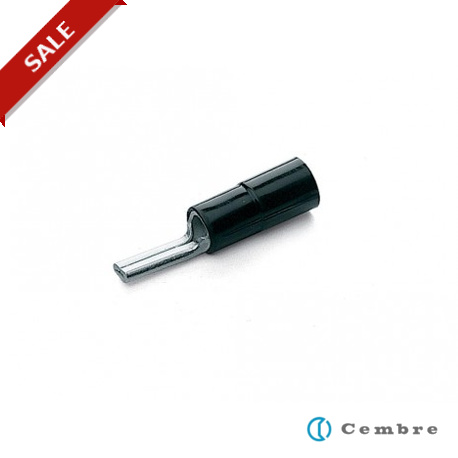

ANE3-P14 2415860 CEMBRE ANE3-P14 INSULATED TERMINAL
$0.00USD
3895 in stock
Key Specifications
Material (Body) (Technical characteristicsOther characteristics):ETP Copper elettrolyticaly tinned
Material (Partially reinforced) (Technical characteristicsOther characteristics):Polyamide PA6.6
Max operating temperature range (Technical characteristicsOther characteristics):115 °C
Min operating temperature range (Technical characteristicsOther characteristics):-20 °C
Supplier Information
CEMBRE
Products: 12084
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Material (Body) (Technical characteristicsOther characteristics) | ETP Copper elettrolyticaly tinned |
| Material (Partially reinforced) (Technical characteristicsOther characteristics) | Polyamide PA6.6 |
| Max operating temperature range (Technical characteristicsOther characteristics) | 115 °C |
| Min operating temperature range (Technical characteristicsOther characteristics) | -20 °C |
| Max operating temperature range (surge) (Technical characteristicsOther characteristics) | 130 °C |
Product Description
PRE-INSULATED TERMINAL SECTION 16 MM² TIP L= 18 MM BLACK
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
ANE-P series terminals are made from electrolytic copper, rolled, tin plated and brazed. The interior of the PA6.6 insulated sleeve is funnel shaped so as to ensure complete and easy introduction of the conductor strands. In order to achieve the best electrical and mechanical performance it is suggested that they are crimped using dies and tools specifically developed for this purpose by Cembre.
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
