AM1/BN-3H

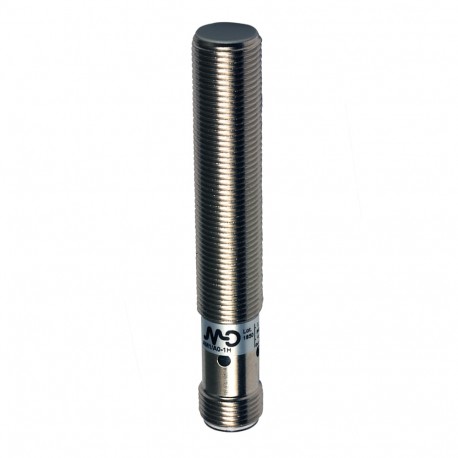

AM1/BN-3H MICRO DETECTORS Inductive sensor M12 shielded NO+NC/NPN conn. M12
$0.00USD
4076 in stock
Key Specifications
Weight:30g
Mounting:shielded
Approvals:CEUR
Dimensions:M12 x 1 / L= 64,8mm
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 30g |
| Mounting | shielded |
| Approvals | CEUR |
| Dimensions | M12 x 1 / L= 64,8mm |
| Hysteresis | 1 … 20% |
| Connections | M12 Plug |
| Output type | NPN |
| Load current | ≤ 200mA |
| LED indicators | yellow LED output state |
| Leakage current | ≤ 10μA |
| Output Function | NO + NC |
| Repeat Accuracy | 5% (UB 24V Ta=23°C ±5°C) |
| Standard target | 12x12mm FE360 |
| Housing Material | nickel-plated brass |
| Correction Factor | copper: 0,33 / aluminum: 0,4 / brass: 0,5 / stainless steel: 1,05 |
| EMC compatibility | IEC 60947-5-2 |
| Operating Voltage | 10 - 30Vdc |
| Tightening torque | 10Nm |
| Max ripple content | ≤10% |
| Operanting distance | 0…3,2mm |
| Output voltage drop | ≤ 1,8V @200mA |
| Switching frequency | 2kHz |
| Thermal drift of Sr | < 10% |
| Active Head Material | PBT |
| Degree of protection | IP 67 (EN60529) |
| Supplied Accessories | 2 M12x1 nuts |
| Operating temperature | -25°C…+70°C |
| Shocks and vibrations | Vibrations IEC 60068-2-6 / shocks IEC 60068-2-27 |
| No-Load supply current | ≤ 10mA |
| Nominal sensing distance | 4mm |
| Short-circuit protection | Yes |
| Reverse Polarity Protection | Yes |
| Time delay before availability | 50ms |
| Protection against inductive loads | Si |
