AM1/A0-3A

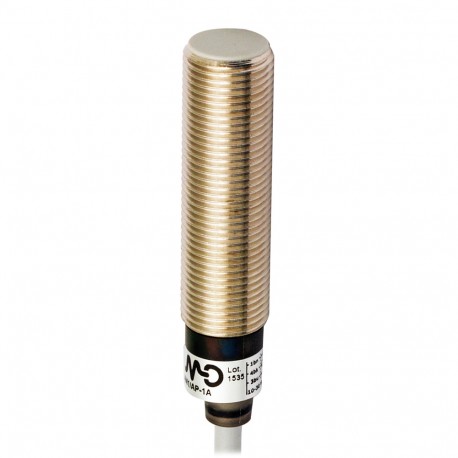

AM1/A0-3A MICRO DETECTORS Inductive sensor M12 shielded NO cable 2m axial
$0.00USD
4045 in stock
Key Specifications
Weight:70g
Mounting:Shielded
Approvals:CEUR
Dimensions:M12 x 1 / L = 59,8mm
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 70g |
| Mounting | Shielded |
| Approvals | CEUR |
| Dimensions | M12 x 1 / L = 59,8mm |
| Hysteresis | 1 … 20% |
| Connections | 2m PVC Cable - Axial Output |
| Output type | NPN/PNP |
| Load current | 3…100mA |
| LED indicators | Yellow LED output state |
| Leakage current | ≤ 0,8mA |
| Output Function | NO |
| Repeat Accuracy | 5% (UB 24V Ta=23°C ±5°C) |
| Standard target | 12x12mm FE360 |
| Housing Material | Nickel-plated brass |
| Correction Factor | copper: 0,42 / aluminium: 0,47 / brass: 0,55 / stainless steel: 0,8 |
| EMC compatibility | IEC 60947-5-2 |
| Operating Voltage | 10 - 30Vdc |
| Tightening torque | 10Nm |
| Max ripple content | ≤10% |
| Operanting distance | 0…3,2mm |
| Output voltage drop | ≤ 2,8V @100mA |
| Switching frequency | 750Hz |
| Thermal drift of Sr | < 10% |
| Active Head Material | PBT |
| Degree of protection | IP 67 (EN60529) |
| Supplied Accessories | 2 nuts M12x1 |
| Operating temperature | -25°C…+70°C |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| No-Load supply current | ≤ 10mA |
| Nominal sensing distance | 4mm |
| Short-circuit protection | Yes (auto-reset) |
| Reverse Polarity Protection | Yes |
| Time delay before availability | 50ms |
| Protection against inductive loads | Yes |
