In Stock Hot Product
AL230C

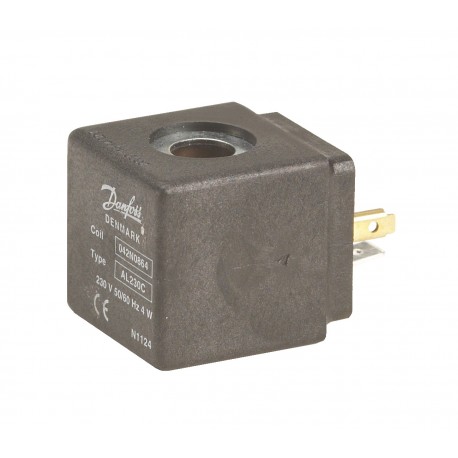

AL230C 042N0864 DANFOSS CONTROLES INDUSTRIALES COIL 230V 50/60HZ 4W DIN spade+ pack 9-3
$24.30USD
461 in stock
Key Specifications
EAN ():5702423135424
Type ():AL230C
Colour ():Black
Volume ():0.093 Liter
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702423135424 |
| Type () | AL230C |
| Colour () | Black |
| Volume () | 0.093 Liter |
| Net weight () | 0.104 Kg |
| Serviceable () | No |
| Gross weight () | 0.114 Kg |
| Actuator size () | 9 mm |
| Product group () | Solenoid valves |
| Coil fastening () | Finger screw |
| Frequency [Hz] () | 50/60 Hz |
| Packing format () | Multi pack |
| Coil connection () | DIN Spade |
| SCIP dossier no. () | 23785618-b379-4da7-a913-ecd40c8fae6d |
| Type designation () | AL230C |
| Parts Program name () | EV210AEV220AEV310A |
| Enclosure rating IP () | IP00 |
| Product accessories () | Solenoid coil accessories |
| Electrical connector () | 3 x spades |
| Electrical connection () | DIN Spade |
| Product Name Description () | Solenoid coil |
| SCIP dossier product name () | Solenoid coils |
| Electrical connection size () | 6.3 mm x 0.8 mm |
| Power consumption [W] 50Hz () | 5 W |
| Power consumption [W] 60Hz () | 4 W |
| Power consumption 50Hz [VA] () | 10 VA |
| Power consumption 60Hz [VA] () | 7 VA |
| Quantity per packing format () | 24 pc |
| Supply voltage 50Hz Max [V] () | 230 V |
| Supply voltage 60Hz Max [V] () | 230 V |
| Electrical connection standard () | EN175301-803 |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Ambient temperature range [°C] [max] () | 50 °C |
| Ambient temperature range [°C] [min] () | -40 °C |
| Ambient temperature range [°F] [max] () | 122 °F |
| Ambient temperature range [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Solenoid coil, AL230C, DIN Spade, Multi pack
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Electrical connection: DIN Spade, Frequency [Hz]: 50/60 Hz, Enclosure rating IP: IP00
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
