AKG 4 RD

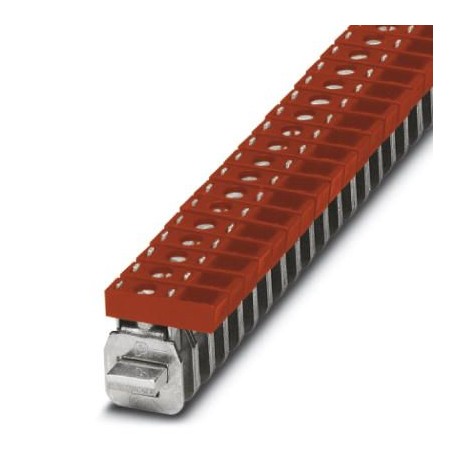

AKG 4 RD 3062922 PHOENIX CONTACT Connection terminal block
$0.00USD
3460 in stock
Key Specifications
GTIN:4046356558334
Note:Made to Order (non-returnable)
Orderkey:3062922
Catalog page:Page 598 (C-3-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356558334 |
| Note | Made to Order (non-returnable) |
| Orderkey | 3062922 |
| Catalog page | Page 598 (C-3-2017) |
| Packing unit | 50 pc |
| Width (General) | 7 mm |
| Length (General) | 23.7 mm |
| Country of origin | DE (Germany) |
| Custom tariff number | 85369010 |
| Minimum order quantity | 50 pc |
| Screw thread (Dimensions) | M4 |
| Color (Key Commercial Data) | red |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Stripping length (Dimensions) | 16 mm |
| Connection method (Dimensions) | Screw connection |
| Tightening torque max (Dimensions) | 1.8 Nm |
| Tightening torque, min (Dimensions) | 1.5 Nm |
| Weight per Piece (excluding packing) | 5.470 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Nominal current IN (Key Commercial Data) | 41 A |
| Nominal voltage UN (Key Commercial Data) | 300 V |
| Insulating material (Key Commercial Data) | PA |
| Maximum load current (Key Commercial Data) | 41 A (with 6 mm² conductor cross section) |
| Nominal cross section (Key Commercial Data) | 4 mm² |
| Conductor cross section AWG max. (Dimensions) | 10 |
| Conductor cross section AWG min. (Dimensions) | 20 |
| Conductor cross section solid max. (Dimensions) | 6 mm² |
| Conductor cross section solid min. (Dimensions) | 0.5 mm² |
| Requirements, voltage drop (Key Commercial Data) | ≤ 3.2 mV |
| Result of voltage-drop test (Key Commercial Data) | Test passed |
| Conductor cross section flexible max. (Dimensions) | 4 mm² |
| Conductor cross section flexible min. (Dimensions) | 0.5 mm² |
| Connection in acc. with standard (Connection data) | CUL |
| Short circuit stability result (Key Commercial Data) | Test passed |
| Result of temperature-rise test (Key Commercial Data) | Test passed |
| Oxygen index (DIN EN ISO 4589-2) (Key Commercial Data) | 28,2% |
| Flammability rating according to UL 94 (Connection data) | V2 |
| Flammability rating according to UL 94 (Key Commercial Data) | V2 |
| 2 conductors with same cross section, solid max. (Dimensions) | 2.5 mm² |
| 2 conductors with same cross section, solid min. (Dimensions) | 0.5 mm² |
| 2 conductors with same cross section, stranded max. (Dimensions) | 2.5 mm² |
| 2 conductors with same cross section, stranded min. (Dimensions) | 0.5 mm² |
| Behavior in fire for rail vehicles (DIN 5510-2) (Key Commercial Data) | Test passed |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 (Connection data) | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 (Connection data) | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 (Connection data) | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 (Key Commercial Data) | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 (Key Commercial Data) | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 (Key Commercial Data) | HL 1 - HL 2 |
| Conductor cross section flexible, with ferrule with plastic sleeve max. (Dimensions) | 6 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. (Dimensions) | 0.5 mm² |
| Relative insulation material temperature index (Elec., UL 746 B) (Key Commercial Data) | 125 °C |
| Conductor cross section flexible, with ferrule without plastic sleeve max. (Dimensions) | 6 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. (Dimensions) | 0.5 mm² |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) (Key Commercial Data) | 125 °C |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. (Dimensions) | 2.5 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. (Dimensions) | 0.5 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. (Dimensions) | 2.5 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. (Dimensions) | 0.5 mm² |
Product Description
Terminal block, nominal voltage: 300 V, nominal current: 41 A, connection type: Screw connection, Dimensioning cross-section: 4 mm², cross-section: 0.5 mm² - 6 mm², mounting: Neutral busbar, colour: r
