AK6/BP-4A

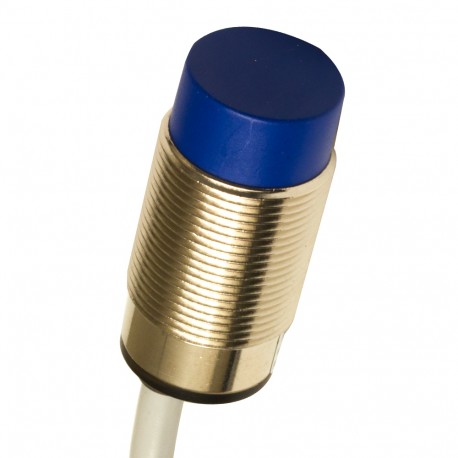

AK6/BP-4A MICRO DETECTORS Inductive sensor M18 short unshielded NO+NC/PNP cable 2m axial
$0.00USD
4175 in stock
Key Specifications
Weight:95g
Mounting:Non Schermato
Approvals:CEUR
Dimensions:M18 x 1 / L = 39mm
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 95g |
| Mounting | Non Schermato |
| Approvals | CEUR |
| Dimensions | M18 x 1 / L = 39mm |
| Hysteresis | 1 … 20% |
| Connections | Cavo PVC 2m |
| Output type | PNP |
| Load current | ≤ 400mA |
| LED indicators | LED giallo stato dell'uscita |
| Leakage current | ≤ 10μA |
| Output Function | NO + NC |
| Repeat Accuracy | 5% (UB 24V Ta=23°C ±5°C) |
| Standard target | 36x36mm FE360 |
| Housing Material | Ottone nichelato |
| Correction Factor | rame: 0,47 / alluminio: 0,42 / ottone: 0,74 / acciaio INOX: 0,36 |
| EMC compatibility | IEC 60947-5-2 |
| Operating Voltage | 10 - 30Vdc |
| Tightening torque | 25Nm |
| Max ripple content | ≤10% |
| Operanting distance | 0…9,7mm |
| Output voltage drop | ≤ 1,5V @400mA |
| Switching frequency | 2kHz |
| Thermal drift of Sr | < 10% |
| Active Head Material | PBT |
| Degree of protection | IP 67 (EN60529) |
| Supplied Accessories | 2 ghiere M18x1 |
| Operating temperature | -25°C…+70°C |
| Shocks and vibrations | Vibrazioni IEC 60068-2-6 / Urti IEC 60068-2-27 |
| No-Load supply current | ≤ 10mA |
| Nominal sensing distance | 12mm |
| Short-circuit protection | Si |
| Reverse Polarity Protection | Si |
| Time delay before availability | 50ms |
| Protection against inductive loads | Si |
