In Stock Hot Product
AK012C

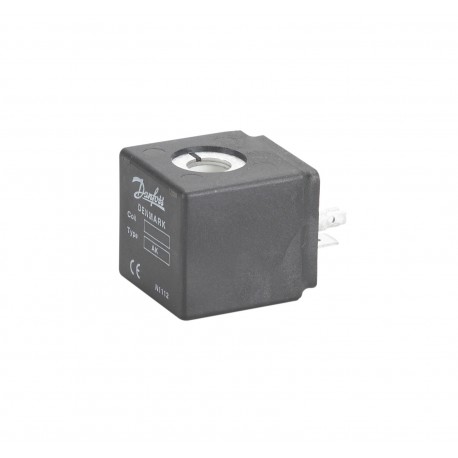

AK012C 042N0846 DANFOSS CONTROLES INDUSTRIALES COIL 12V 50HZ 3W DIN spade+ pack 9-32
$25.78USD
433 in stock
Key Specifications
EAN ():5702423063567
Type ():AK012C
Colour ():Black
Volume ():0.12 Liter
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702423063567 |
| Type () | AK012C |
| Colour () | Black |
| Volume () | 0.12 Liter |
| Net weight () | 0.106 Kg |
| Serviceable () | No |
| Gross weight () | 0.118 Kg |
| Actuator size () | 9 mm |
| Product group () | Solenoid valves |
| Coil fastening () | Finger screw |
| Frequency [Hz] () | 50/60 Hz |
| Packing format () | Multi pack |
| Coil connection () | DIN Spade |
| Type designation () | AK012C |
| Enclosure rating IP () | IP00 |
| Product accessories () | Solenoid coil accessories |
| Electrical connector () | 3 x spades |
| Electrical connection () | DIN Spade |
| Supply voltage [V] AC () | 12 V |
| Product Name Description () | Solenoid coil |
| Electrical connection size () | 6.3 mm x 0.8 mm |
| Power consumption [W] 50Hz () | 3 W |
| Power consumption [W] 60Hz () | 2.5 W |
| Power consumption 50Hz [VA] () | 6 VA |
| Power consumption 60Hz [VA] () | 5 VA |
| Quantity per packing format () | 24 pc |
| Supply voltage 50Hz Max [V] () | 12 V |
| Supply voltage 60Hz Max [V] () | 12 V |
| Electrical connection standard () | EN175301-803 |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Ambient temperature range [°C] [max] () | 50 °C |
| Ambient temperature range [°C] [min] () | -40 °C |
| Ambient temperature range [°F] [max] () | 122 °F |
| Ambient temperature range [°F] [min] () | -40 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Solenoid coil, AK012C, DIN Spade, Supply voltage [V] AC: 12, Multi pack
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Electrical connection: DIN Spade, Supply voltage [V] AC: 12, Frequency [Hz]: 50/60 Hz, Enclosure rating IP: IP00
