AIG703WGNMS5

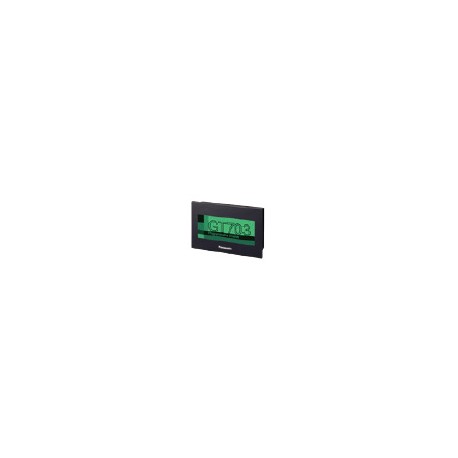

AIG703WGNMS5 PANASONIC GT703 Touch Screen 3.8", 64 gray levels, 480x192 points, Ethernet + RS422/485 + mini-..
$0.00USD
3512 in stock
Key Specifications
Item:Specifications
Details:GT703
Product:Programmable Display
Net weight:180 g approx.
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Details | GT703 |
| Product | Programmable Display |
| Net weight | 180 g approx. |
| Part Number | AIG703WGNMS5 |
| Power supply | 5V DC |
| Product name | GT703 |
| Product Number | AIG703WGNMS5 |
| Touch key life | 1 million operations or more (at +25 ℃+77 ℉) |
| Ambient humidity | 20 to 85 % RH (at +25 ℃+77 ℉) (No dew condensation allowed) |
| Functions:Buzzer | Installed |
| Shock resistance | 147 m/s2, 3 times in each of the X, Y and Z directions |
| Storage humidity | 10 to 85% RH (at 25 ℃+77 ℉) (No dew condensation allowed) |
| Display:Backlight | 3-color LED (white / pink / red) |
| Power consumption | 2 W or less(※): Power cannot be supplied from TOOL port of PLC (CPU unit). |
| COM. Port:Protocol | Our FP series supported, General-purpose serial interface supported, Modbus RTU mode protocol(Master / Slave) supported and Other companies' PLC supported(Refer to the compatible PLC list for manufacturers and models.) |
| Communication port | RS-422/RS-485 |
| Display:Resolution | 480 (W) × 192 (H) dots |
| Functions:Graphics | Straight lines, Continuous straight lines, Squares, Circles, Arcs, Curves, Fan shapes, Polygons, Fill, Bitmaps |
| Ambient temperature | 0 to +50 ℃+32 to +122 ℉ |
| COM. Port:Connector | Connector terminal block (8 pins) |
| Functions:Languages | Japanese, English, Simplified Chinese, Traditional Chinese, Korean, German, Italian, Spanish, French, Turkish, Russian, Vietnamese |
| Storage temperature | -20 to +60 ℃-4 to +140 ℉ |
| Functions:Font types | Fixed (GTWIN) : 8 × 8, 16 × 8, and 16 × 16 dots, Characters can be displayed in the 1, 2, 4, 8 or 16 times width or height.True Type (GTWIN): 10 to 192 dots, Windows®: 10 to 240 dots |
| Memory backup:Memory | SRAM |
| Touch key resolution | Free layout (8 dots min.) |
| Vibration resistance | 5 to 8.4 Hz amplitude: 3.5 mm0.138 in, 8.4 to 150 Hz acceleration 9.8 m/s2, 10 sweeps each in X, Y and Z directions (1 octave/min.) |
| Display:Display color | 2 colors (black / white, 64-gray scale) |
| Display:Display device | TFT monochrome LCD |
| Ethernet port:Protocol | Our dedicated protocolOur FP series supported, Modbus-TCP supported and Other companies' PLC supported (Mitsubishi Electric MC protocol) |
| User's memory:Capacity | 16Mbyte |
| User’s memory:Memory | F-ROM |
| Ethernet port:Baud rate | 100Mbps/10Mbps automatic negotiation(Note) : Switching between different speeds is done automatically by auto negotiation function. |
| Ethernet port:Interface | 100BASE-TX / 10BASE-T |
| Operating voltage range | 4.5 ～ 5.5 V DC |
| Display:Displayable area | 88.5 (W) × 35.4 (H) mm3.484 (W) × 1.394 (H) in |
| Environmental resistance | IP67 (in the initial stages), Dust-proof and drip-proof from the front of the panel only, (Rubber packing is attached to the panel contact surface.) (Note)：This protective structure condition applies to the front surface of the installed panel. This condition does not guarantee usage in all environments provided by users. When reattaching the panel, replace the waterproof packing. |
| Functions:Clock function | Provided with a built-in clock. (Can also refer to and display a PLC clock.)*Buy the backup battery [AFPX-BATT]. |
| Functions:Part functions | Lamps, Switches, Data, Bar graphs, Clocks, Keyboards, Line graphs, Alarm list, Alarm history |
| Functions:Other functions | Recipe, Flow display, Write device, Multi language exchange, Multiple PLC connection, Operation security, GT link, Data logging, SD recipe (Note)：The data logging and SD recipe functions are available with only models equipped with an SD / SDHC memory card slot. |
| Functions:Screen creation | Dedicated software should be used. Applicable OS: Windows® Vista / 7 / 8 / 8.1 / 10 (Note)：The 64-bit version is not supported except for Windows® 7 / 8 / 8.1 / 10.Windows is registered trademark or trademark of Microsoft Corporation in the United States and other countries. |
| Touch key operation force | 0.8 N or less |
| Functions:Through function | GT connected between PC and PLC allows PLC to be debugged without a direct connection to a PC. |
| Functions:Number of screens | 250 screens approx. (Note)：The number of screens that can be registered varies according to the registered contents. |
| Functions:Screen setting No. | Base screens: No. 0 to 3FF, Key board screens: No. 0 to 7, Login screens: No. 0 to F |
| Memory backup:Backup battery | - |
| Superposed noise suppression | 1,000 V [P-P] or more, pulse width of 50 ns, 1 μs between power supply terminals (by a noise simulator) |
| Ethernet port:Connector shape | Plug-in phone jack (RJ-45) |
| Functions:Contrast adjustment | Unnecessary |
| CE marking directive compliance | EMC Directive, RoHS Directive |
| COM. Port:Communication standard | Conforms to RS-422/RS-485 |
| Power supply unit isolation method | Transformer isolation |
| Screen data transfer interface:Protocol | Our dedicated protocol |
| Screen data transfer interface:Connector | USB Mini-B |
| Functions:Backlight brightness adjustment | Can be set on the menu screen, via the GT configuration screen of GTWIN, or via PLC.(There are some minor variations in the backlight brightness.) |
| Functions:Automatic communication settings | The communication speed (baud rate) is automatically changed if there is no response from the target equipment. |
| COM. Port:External communication conditions | Baud rate: 9,600 bps, 19,200 bps, 38,400 bps, 57,600 bps, 115,200 bpsData bits: 7 or 8 bits, Parity: None, Odd, Even, Stop bits: 1 bit |
| Screen data transfer interface:Communication standard | USB2.0 |
