AIG32MQ03DE

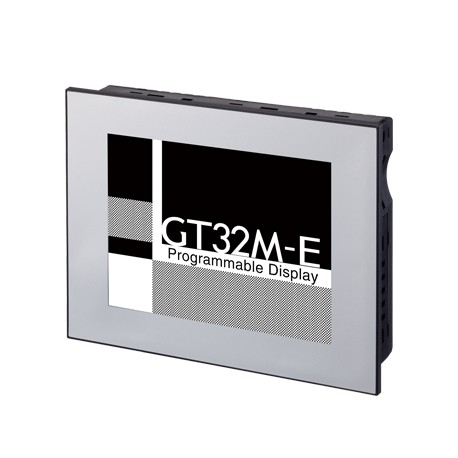

AIG32MQ03DE PANASONIC Touch panel GT32M-E 5.7", IP67, -20°C to + 60°C, Anti ultraviolet rays, Non-glare trea..
$0.00USD
3402 in stock
Key Specifications
Item:Specifications
Details:GT32M-E (Tough Series)
Product:Programmable Display
Net weight:470 g approx.
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Details | GT32M-E (Tough Series) |
| Product | Programmable Display |
| Net weight | 470 g approx. |
| Part Number | AIG32MQ03DE |
| Power supply | 24 V DC |
| Product name | GT32-E |
| Product Number | AIG32MQ03DE |
| Touch key life | 1 million operations or more (at 25 ℃77 ℉) |
| Ambient humidity | 10 to 90 %RH (at 25 ℃77 ℉), (No dew condensation allowed) |
| Functions:Buzzer | Installed |
| Shock resistance | 147 m/s2, 3 times in each of the X, Y and Z directions |
| Storage humidity | 10 to 90 %RH (at 25 ℃77 ℉), (No dew condensation allowed) |
| Display:Backlight | White LED |
| Power consumption | 4.8 W or less |
| COM. Port:Protocol | Our FP series supported, General-purpose serial interface supported, and Other companies' PLC supported (Refer to the "PLC COMPATIBILITY TABLE" for manufacturers and models.) |
| Display:Resolution | 320 (W) x 240 (H) dots |
| Functions:Graphics | Straight lines, Continuous straight lines, Squares, Circles, Ovals, Arcs, Elliptic arcs, Fan shapes, Elliptic fan shapes, Beveled squares, Bitmaps |
| Ambient temperature | -20 to +60 ℃-4 to +140 ℉Note: Please use within a temperature range of −20 to +55 ℃−4 to +131 ℉when horizontally installed and vertically installed in a portrait orientation and when using battery. |
| COM. Port:Connector | Connector terminal block (8 pins) |
| Functions:Languages | Japanese, English, Simplified Chinese, Traditional Chinese, Korean, German, Italian, Spanish, French, Turkish, Russian, Vietnamese |
| Storage temperature | -20 to +60 ℃-4 to +140 ℉ |
| Functions:Font types | Fixed (GTWIN) : 8 × 8, 16 × 8, and 16 × 16 dots, CharacteRS- can be displayed in the 1, 2, 4, 8 or 16 times width or height.True Type (GTWIN): 10 to 192 dots, Windows®: 10 to 240 dots |
| Memory backup:Memory | SRAM |
| Touch key resolution | Free layout (8 dots min.) |
| Vibration resistance | 5 to 8.4 Hz, amplitude: 3.5 mm0.138 in, 8.4 to 150 Hz, acceleration 9.8 m/s2, 10 sweeps each in X, Y and Z directions (1 octave / min.) |
| Display:Display color | 2 colors (black/white, 16-gray scale) |
| Display:Display device | TFT monochrome LCD |
| User's memory:Capacity | 12 Mbyte |
| User’s memory:Memory | F-ROM |
| Operating voltage range | 21.6 to 26.4 V DC |
| Display:Displayable area | 115.2 (W) x 86.4 (H) mm4.535 (W) x 3.402 (H) in |
| Environmental resistance | IP67 (in the initial stages), Dust-proof and drip-proof from the front of the panel only (Rubber packing is attached to the panel contact surface.)Note: This protective structure condition applies to the front surface of the installed panel. This condition does not guarantee usage in all environments provided by users. When reattaching the panel, replace the waterproof packing. |
| Functions:Clock function | Provided with a built-in clock. (Can also refer to and display a PLC clock.) * Buy a commercially available battery. |
| Functions:Part functions | Messages, Lamps, Switches, Function switches, Data, Bar graphs, Clocks, Keyboards, Line graphs, Alarm list, Alarm history, Custom parts (messages, lamps, switches) |
| Functions:Other functions | Recipe, Flow display, Write device, Multiple PLC connection, FP monitor, Language switching, GT link, Operation security, Data logging, SD recipeNote: The data logging and SD recipe functions are available with only models equipped with an SD / SDHC memory card slot. |
| Functions:Screen creation | Dedicated software should be used. Applicable OS: Windows® 2000 / XP / Vista / 7 / 8 / 8.1 / 10Note:The 64-bit version is not supported except for Windows® 7 / 8 / 8.1 / 10.Windows is registered trademark or trademark of Microsoft Corporation in the United States and other countries. |
| Touch key operation force | 0.8 N or less |
| Functions:Through function | GT connected between PC and PLC allows PLC to be debugged without a direct connection to a PC. |
| Functions:Number of screens | 180 screens approx.Note: The number of screens that can be registered varies according to the registered contents. |
| Functions:Screen setting No. | Base screens: No. 0 to 3FF, Key board screens: No. 0 to 7, Login screens: No. 0 to F |
| Memory backup:Backup battery | Lithium battery (replaceable) AFPX-BATT (Does not include with product.) |
| Superposed noise suppression | 1,000 V [P-P] or more, pulse width of 50 ns, 1 micros between power supply terminals (by a noise simulator) |
| Functions:Contrast adjustment | Unnecessary |
| COM. Port:Communication standard | Conforms to RS232C |
| Power supply unit isolation method | Transformer isolation |
| Screen data transfer interface:Protocol | Our dedicated protocol |
| Screen data transfer interface:Connector | USB TYPE-B |
| Functions:Backlight brightness adjustment | Can be set on the menu screen, via the GT configuration screen of GTWIN, or via PLC. |
| Functions:Automatic communication settings | The communication speed (baud rate) is automatically changed if there is no response from the target equipment. |
| COM. Port:External communication conditions | Baud rate: 9,600 bps, 19,200 bps, 38,400 bps, 57,600 bps, and 115,200 bpsData bits: 7 or 8 bits, Parity: None, Odd, Even, Stop bits: 1 bit |
| Screen data transfer interface:Communication standard | USB1.1 |
Product Description
GT32M 5.7" Touch Screen, Silver Frame, IP67, -20 to +60°, UV Filter, 16 Shades of Gray, RTC, 320 x 240 Dots. 24 VDC, USB, RS232C
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
