AIG05GQ04D

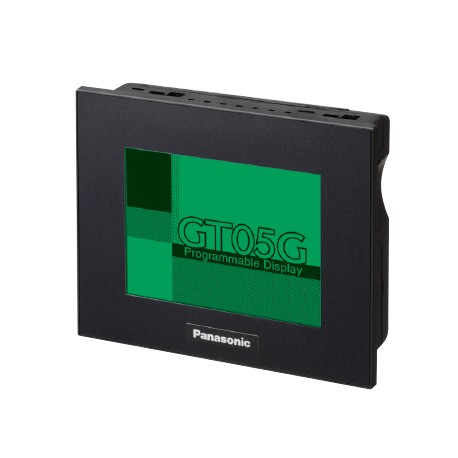

AIG05GQ04D PANASONIC Touch panel GT05G 3.5", monochrome, 320x240 pix., RS422/485 + USB-B (prog), 24V DC, SD/..
$0.00USD
4008 in stock
Key Specifications
Item:Specifications
Details:GT05G
Product:Compact Programmable Display
Net weight:230 g approx.
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Details | GT05G |
| Product | Compact Programmable Display |
| Net weight | 230 g approx. |
| Part Number | AIG05GQ04D |
| Power supply | 24 V DC |
| Product name | GT05 |
| Product Number | AIG05GQ04D |
| Touch key life | 1 million operations or more (at +25 ℃+77 ℉) |
| Ambient humidity | 20 to 85% RH (at +25 ℃+77 ℉), (No dew condensation allowed) |
| Functions:Buzzer | Installed |
| Shock resistance | 98 m/s2, 4 times in each of the X, Y and Z directions |
| Storage humidity | 10 to 85% RH (at +25 ℃+77 ℉), (No dew condensation allowed) |
| Display:Backlight | 3-color LED (green / orange / red) |
| Power consumption | 2.4 W or less |
| COM. Port:Protocol | Our FP series supported, General-purpose serial interface supported, Other companies' PLC supported (Refer to the compatible PLC list for manufacturers and models.) |
| Display:Resolution | 320 (W) x 240 (H) dots |
| Functions:Graphics | Straight lines, Continuous straight lines, Squares, Circles, Ovals, Arcs, Elliptic arcs, Fan shapes, Elliptic fan shapes, Beveled squares, Bitmaps |
| Ambient temperature | 0 to +50 ℃+32 to +122℉ |
| COM. Port:Connector | Connector terminal block (8 pins) |
| Functions:Languages | Japanese, English, Simplified Chinese, Traditional Chinese, Korean, German, Italian, Spanish, French, Turkish, Russian, Vietnamese |
| Storage temperature | –20 to +60 ℃–4 to +140℉ |
| Functions:Font types | Fixed (GTWIN) : 8 × 8, 16 × 8, and 16 × 16 dots, Characters can be displayed in the 1, 2, 4, or 8 times width or height.TrueType (GTWIN): 10 to 240 dots, Windows®: 10 to 240 dots |
| Memory backup:Memory | SRAM |
| Touch key resolution | Free layout (8 dots min.) |
| Vibration resistance | 10 to 55 Hz (1 minute cycle): Double amplitude: 0.75 mm0.030 in, 10 minutes in each of the X, Y, and Z directions |
| Display:Display color | 2 colors (black/white) |
| Display:Display device | TFT monochrome LCDNote: The display has been changed STN LCD to TFT LCD from production in March 2016. |
| User's memory:Capacity | 2 Mbyte |
| User’s memory:Memory | F-ROM |
| Operating voltage range | 21.6 to 26.4 V DC |
| Display:Displayable area | 70.6 (W) x 52.9 (H) mm2.780 (W) x 2.083 (H) inch |
| Environmental resistance | IP65 (in the initial stages)Note: This protective structure condition applies to the front surface of the installed panel. This condition does not guarantee usage in all environments provided by users. When reattaching the panel, replace the waterproof packing. |
| Functions:Clock function | Provided with a built-in clock. (Can also refer to and display a PLC clock.)* Buy the backup battery (AFPX-BATT). |
| Functions:Part functions | Messages, Lamps, Switches, Function switches, Data, Bar graphs, Clocks, Keyboards, Line graphs, Alarm list, Alarm history, Custom parts (messages, lamps, switches) |
| Functions:Other functions | Recipe, Flow display, Write device, Language switching, GT link, Operation security, Data logging, SD recipe |
| Functions:Screen creation | Dedicated software should be used. Applicable OS: Windows® 2000 / XP / Vista / 7 / 8 / 8.1 / 10Note: The 64-bit version is not supported except for Windows® 7 / 8 / 8.1 / 10.Windows is registered trademark or trademark of Microsoft Corporation in the United States and other countries. |
| Touch key operation force | 0.8 N or less |
| Functions:Through function | GT connected between PC and PLC allows PLC to be debugged without a direct connection to a PC. |
| Functions:Number of screens | 240 screens approx.Note: The number of screens that can be registered varies according to the registered contents. |
| Functions:Screen setting No. | No. 0 to 3FF |
| Memory backup:Backup battery | Lithium battery (replaceable) AFPX-BATT (Does not include with product.) |
| Superposed noise suppression | 1,000 V [P-P] or more, pulse width of 50 ns, 1 μs between power supply terminals (by a noise simulator) |
| Functions:Contrast adjustment | Unnecessary |
| COM. Port:Communication standard | Conforms to RS-232C |
| Power supply unit isolation method | Transformer isolation |
| Screen data transfer interface:Protocol | Our dedicated protocol |
| Screen data transfer interface:Connector | USB TYPE-B |
| Functions:Automatic communication settings | The communication speed (baud rate) is automatically changed if there is no response from the target equipment. |
| COM. Port:External communication conditions | Baud rate: 9,600 bps, 19,200 bps, 38,400 bps, 57,600 bps, 115,200 bpsData bits: 7 or 8 bits, Parity: None, Odd, Even, Stop bits: 1 bit |
| Screen data transfer interface:Communication standard | USB1.1 |
Product Description
GT05G 3.5" Touch Screen, Black Frame, 3 Backlight Colors (Green, Orange, Red), RTC, 320 x 240 Dots, 24VDC, RS422, SD/SDHC Card
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
