In Stock Hot Product
AI 35-18 RD

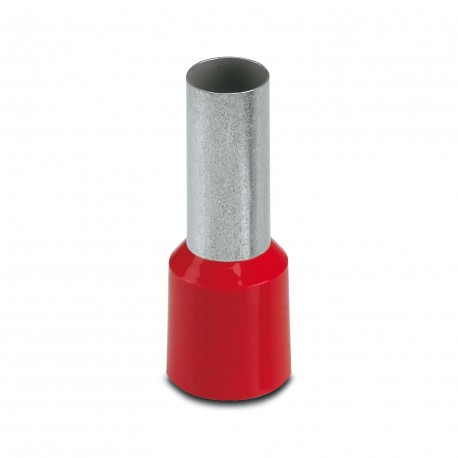

AI 35 -18 RD 3201495 PHOENIX CONTACT Ferrule
$0.24USD
41712 in stock
Key Specifications
Color:red (RAL 3001)
Coating:tin-plated (galvanic)
Material:CU-DHP
Components:free from silicone and halogen
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Color | red (RAL 3001) |
| Coating | tin-plated (galvanic) |
| Material | CU-DHP |
| Components | free from silicone and halogen |
| Product type | Cable end sleeve |
| Sleeve length | 30 mm |
| Article revision | 05 |
| Ferrule diameter | 8.3 mm |
| Stripping length | 22 mm |
| Conductor category | stranded conductors, class 2, 5, 6 / B, C, K, M |
| Dimensional drawing | |
| Length contact range | 18 mm |
| Permanent temperature | 105 °C (-40 °C no load / 0 °C dynamic load) |
| Sleeve wall thickness | 0.2 mm |
| Short-term temperature | 120 °C |
| Surface characteristics | Tin-plated |
| Maximum stripping length | 22 mm |
| Insulating collar thickness | 0.5 mm |
| Design according to standard | DIN 46228-4, UL 486F-E |
| Conductor cross section AWG max. | 2 |
| Conductor cross section flexible max. | 35 mm² |
| Flammability rating according to UL 94 | HB |
| Inner dimensions of the insulating collar | 12.5 mm |
Product Description
Toe cap, cuff length: 18 mm, length: 32 mm, colour: red
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
