AI 1,5-18 RD

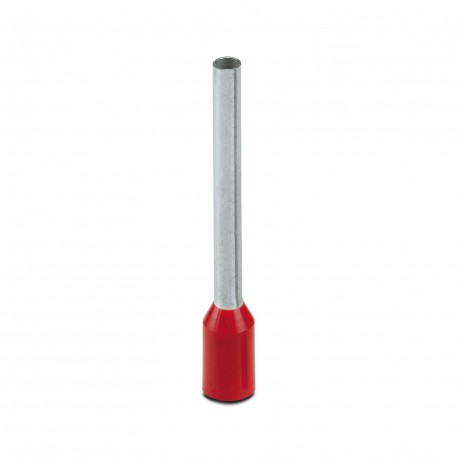

AI 1,5 -18 RD 3241125 PHOENIX CONTACT Ferrule
$0.00USD
3730 in stock
Key Specifications
GTIN:4046356713504
Note:Made to Order (non-returnable)
Orderkey:3241125
Catalog page:Page 483 (C-3-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356713504 |
| Note | Made to Order (non-returnable) |
| Orderkey | 3241125 |
| Catalog page | Page 483 (C-3-2017) |
| Packing unit | 500 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85369010 |
| Minimum order quantity | 500 pc |
| Color (Ambient conditions) | red |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Coating (Ambient conditions) | tin-plated (galvanic) |
| Material (Ambient conditions) | CU-DHP |
| Components (Ambient conditions) | free from silicone and halogen |
| Length (b) (Key Commercial Data) | 24 mm |
| Short-term temperature (Dimensions) | 120 °C |
| Sleeve length (Key Commercial Data) | 18 mm |
| Weight per Piece (excluding packing) | 0.190 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Ferrule diameter (Key Commercial Data) | 1.8 mm |
| Conductor category (Ambient conditions) | Stranded conductors, class 2, 5, 6 / B, C, K, M |
| Max. permanent temperature (Dimensions) | 105 °C (-40°C no load / 0°C dynamic load) |
| Connection in acc. with standard (General) | CSA |
| Sleeve wall thickness (Key Commercial Data) | 0.15 mm |
| Maximum stripping length (Key Commercial Data) | 21 mm |
| Flammability rating according to UL 94 (General) | HB |
| Insulating collar thickness (Key Commercial Data) | 0.3 mm |
| Flammability rating according to UL 94 (Ambient conditions) | HB |
| Inner dimension of the insulating collar (d) (Key Commercial Data) | 3.4 mm |
Product Description
Toe cap, cuff length: 18 mm, length: 24 mm, colour: red
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
