AHS/CP-1A

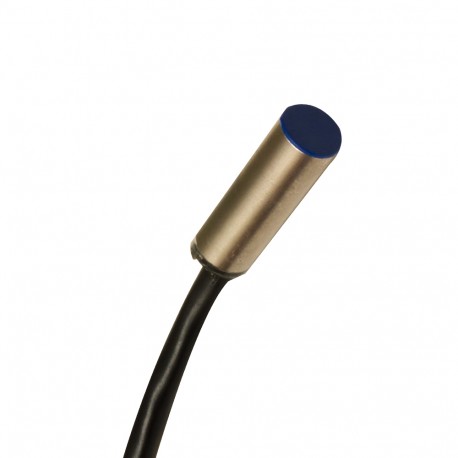

AHS/CP-1A MICRO DETECTORS Inductive sensor Ø6,5 Sensing distance 1,5 mm NC/PNP cable 2m axial
$0.00USD
3659 in stock
Key Specifications
Weight:30g
Mounting:Shielded
Approvals:CEcULus
Dimensions:Ø6,5 / L = 20,3mm
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 30g |
| Mounting | Shielded |
| Approvals | CEcULus |
| Dimensions | Ø6,5 / L = 20,3mm |
| Hysteresis | 1 … 20% |
| Connections | 2m PVC Cable |
| Output type | PNP |
| Load current | ≤ 100mA |
| LED indicators | Yellow LED output state |
| Leakage current | ≤ 10μA |
| Output Function | NC |
| Repeat Accuracy | 5% (UB 24V Ta=23°C ±5°C) |
| Standard target | 6,5x6,5mm FE360 |
| Housing Material | stainless steel AISI303 |
| Correction Factor | copper: 0,10 ± 10% / aluminium: 0,05 ± 10% / brass: 0,13 ± 10% / stainless steel: 0,54 ± 10% |
| EMC compatibility | IEC 60947-5-2 |
| Operating Voltage | 10 - 30Vdc |
| Max ripple content | ≤10% |
| Operanting distance | 0…1,21mm |
| Output voltage drop | ≤ 1,5V @100mA |
| Switching frequency | 7kHz |
| Thermal drift of Sr | < 10% |
| Active Head Material | PBT |
| Degree of protection | IP 67 (EN60529) |
| Operating temperature | -25°C…+70°C |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| No-Load supply current | ≤ 10mA |
| Nominal sensing distance | 1,5mm |
| Short-circuit protection | Yes (auto-reset) |
| Reverse Polarity Protection | Yes |
| Time delay before availability | ≤ 50ms |
| Protection against inductive loads | Yes |
Product Description
AHS/CP-1A Inductive sensor Ø6,5 Sn 1,5 mm NC/PNP cable 2m axial
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
