AGK PT 4X6/M10 BU

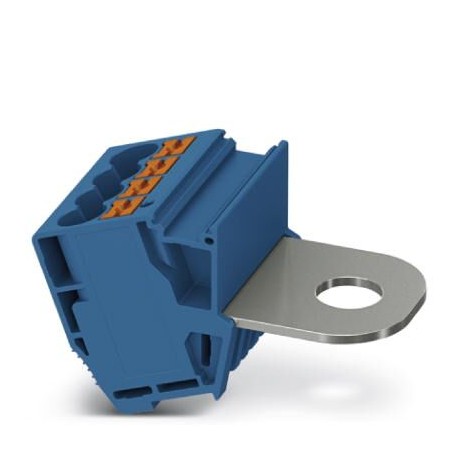

AGK PT 4X6/M10 BU 1083237 PHOENIX CONTACT Pick-off terminal block, nom. voltage: 1000 V, nominal current: 41..
$0.00USD
4947 in stock
Key Specifications
GTIN:4055626818917
Orderkey:1083237
(Drawings):
Catalog page:Page 119 (C-1-2019)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626818917 |
| Orderkey | 1083237 |
| (Drawings) | |
| Catalog page | Page 119 (C-1-2019) |
| Packing unit | 1 |
| Width (General) | 31 mm |
| Color (Drawings) | blue |
| Height (General) | 32.3 mm |
| Length (General) | 57.4 mm |
| UNSPSC 11 (ETIM) | 39121410 |
| ETIM 2.0 (eCl@ss) | EC000897 |
| ETIM 3.0 (eCl@ss) | EC000897 |
| ETIM 4.0 (eCl@ss) | EC000897 |
| ETIM 5.0 (eCl@ss) | EC000897 |
| ETIM 6.0 (eCl@ss) | EC000897 |
| ETIM 7.0 (eCl@ss) | EC000897 |
| Note (Dimensions) | Connection bolts |
| (Connection data) | IEC 60947-7-1 |
| UNSPSC 13.2 (ETIM) | 39121402 |
| UNSPSC 18.0 (ETIM) | 39121410 |
| UNSPSC 19.0 (ETIM) | 39121410 |
| UNSPSC 20.0 (ETIM) | 39121410 |
| UNSPSC 21.0 (ETIM) | 39121410 |
| UNSPSC 6.01 (ETIM) | 30211811 |
| UNSPSC 12.01 (ETIM) | 39121410 |
| Custom tariff number | 85369010 |
| UNSPSC 7.0901 (ETIM) | 39121410 |
| Connection (Dimensions) | 1 level |
| Hole diameter (General) | 10.4 mm |
| Screw thread (Dimensions) | M10 |
| Bolt diameter (Dimensions) | 10 mm |
| Open side panel (Drawings) | No |
| Number of levels (Drawings) | 1 |
| eCl@ss 4.0 (Classifications) | 27141131 |
| eCl@ss 4.1 (Classifications) | 27141131 |
| eCl@ss 5.0 (Classifications) | 27141131 |
| eCl@ss 5.1 (Classifications) | 27141120 |
| eCl@ss 6.0 (Classifications) | 27141100 |
| eCl@ss 7.0 (Classifications) | 27141151 |
| eCl@ss 8.0 (Classifications) | 27141120 |
| eCl@ss 9.0 (Classifications) | 27141120 |
| Nominal current IN (Drawings) | 41 A |
| Nominal voltage UN (Drawings) | 1000 V |
| Stripping length (Dimensions) | 10 mm ... 12 mm |
| Connection method (Dimensions) | Bolt connection |
| Insulating material (Drawings) | PA |
| Rated surge voltage (Drawings) | 8 kV |
| Maximum load current (Drawings) | 57 A |
| Overvoltage category (Drawings) | III |
| Hole diameter, min. (Dimensions) | 10.4 mm |
| Maximum total current (Drawings) | 106 A (Bolt connection) |
| Nominal cross section (Drawings) | 6 mm² |
| Number of connections (Drawings) | 5 |
| Cable lug width, max. (Dimensions) | 32 mm |
| Tightening torque max (Dimensions) | 20 Nm |
| Tightening torque, min (Dimensions) | 10 Nm |
| Insulating material group (Drawings) | I |
| Internal cylindrical gage (Dimensions) | A5 |
| Conductor cross section AWG max. (Dimensions) | 8 |
| Conductor cross section AWG min. (Dimensions) | 20 |
| Connection in acc. with standard (Dimensions) | IEC 60947-7-1 |
| Conductor cross section solid max. (Dimensions) | 10 mm² |
| Conductor cross section solid min. (Dimensions) | 0.5 mm² |
| Flammability rating according to UL 94 (Drawings) | V0 |
| Conductor cross section flexible max. (Dimensions) | 120 mm² |
| Conductor cross section flexible min. (Dimensions) | 6 mm² |
| Connection in acc. with standard (Connection data) | IEC 60947-7-1 |
| Max. AWG conductor cross section, flexible (Dimensions) | 250 kcmil |
| Min. AWG conductor cross section, flexible (Dimensions) | 10 |
| Flammability rating according to UL 94 (Connection data) | V0 |
| Conductor cross section flexible, with ferrule with plastic sleeve max. (Dimensions) | 6 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. (Dimensions) | 0.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. (Dimensions) | 6 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. (Dimensions) | 0.5 mm² |
Product Description
Branch terminal, nominal voltage: 1000 V, nominal current: 41 A, number of connections: 5, connection type: Push-in connection, 1st floor, Dimensioning section: 6 mm², section: 0.5 mm² - 10 mm², Stud
