AFP0HCCS2

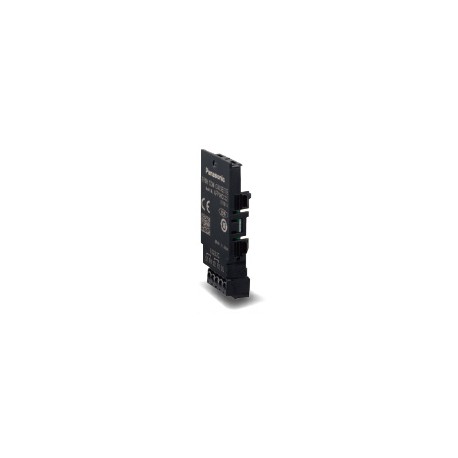

AFP0HCCS2 PANASONIC Communication cassette with 2 x RS232C (2x3 pin)
$0.00USD
4758 in stock
Key Specifications
Item:Specifications
Remark:Notes:1) The start and end codes can be used only for general-purpose serial communications.2) The unit No. (station number) can be selected at system register.3) Sufficient noise tolerance is provided but it is recommended that a user program be created for retransmission. (To improve the reliability of communications when a communication error occurs due to an excessive noise or when the target device cannot receive data temporarily.)4) When connecting a commercially available device that has an RS-485 interface, please confirm operation using the actual device. In some cases, the number of station units, transmission distance and communication speed vary depending on the connected device.5) The transmission distance, transmission speed, and number of stations should be within the range of the graph below, depending on each value.When the transmission speed is 19,200 bits/s, you can set up to 99 stations and up to 1,200 m3,937.008 fttransmission distance.
Interface:RS-232C 2 channels
Net weight:10 g approx.
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Remark | Notes:1) The start and end codes can be used only for general-purpose serial communications.2) The unit No. (station number) can be selected at system register.3) Sufficient noise tolerance is provided but it is recommended that a user program be created for retransmission. (To improve the reliability of communications when a communication error occurs due to an excessive noise or when the target device cannot receive data temporarily.)4) When connecting a commercially available device that has an RS-485 interface, please confirm operation using the actual device. In some cases, the number of station units, transmission distance and communication speed vary depending on the connected device.5) The transmission distance, transmission speed, and number of stations should be within the range of the graph below, depending on each value.When the transmission speed is 19,200 bits/s, you can set up to 99 stations and up to 1,200 m3,937.008 fttransmission distance. |
| Interface | RS-232C 2 channels |
| Net weight | 10 g approx. |
| Part Number | AFP0HCCS2 |
| Product name | FP0H communication cassettes |
| Product Number | AFP0HCCS2 |
| Number of stations | - |
| Synchronous method | Start-stop synchronization system |
| Communication speed | 1,200(Note), 2,400(Note), 4,800, 9,600, 19,200, 38,400, 57,600, 115,200, 230,400 bits/sec.(Note): System register no. 415 cannot be used to set the baud rate to 1,200 bps. To set the baud rate to 1,200 bps, use the SYS1 instruction. If the baud rate of any of the COM ports is 2,400 bps or lower, F-ROM access will slow down.Example) F12(ICRD) instruction, P13(ICWT) instruction, etc. |
| Communication method | Half-duplex system |
| Transmission distance | Max. 15 m49.213 ft |
| Data transmission order | Transmit from bit 0 in character units. |
| Communication configuration | 1 : 1 communication |
| Transmission format : Parity | none / odd / even |
| Transmission format : End code | CR / CR + LF / none / ETX / Time (0 to 100 ms) |
| Transmission format : Stop bit | 1 bit / 2 bits |
| Transmission format : Start code | with STX / without STX |
| Transmission format : Data length | 7 bits / 8 bits |
Product Description
FP0H Communication Cassette. 2 RS232C Ports (3 wires)
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
