In Stock Hot Product
AFK41R5

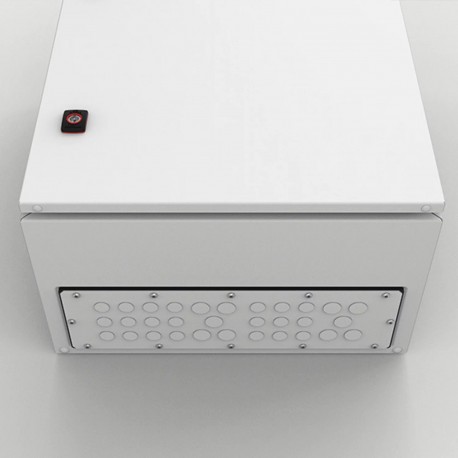

AFK41R5 ELDON Gland plate with knock out AFK41R5
$0.00USD
4870 in stock
Key Specifications
EAN:8713574124325
UPC:783510119478
Color:Light Gray
Depth:3 mm
Supplier Information
ELDON
Products: 4827
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 8713574124325 |
| UPC | 783510119478 |
| Color | Light Gray |
| Depth | 3 mm |
| Width | 128 mm |
| Finish | Powder Coated |
| Height | 542 mm |
| Weight | 0.9 kg |
| Material | Mild Steel |
| Thickness | 1.4 mm |
| Color Code | RAL 7035 |
| Feature Name | Feature Value |
| Product Family | Wall-Mounted |
| Type (EF001139) | |
| Gland Plate Type | 4 |
| Knockout Pattern | (27) M16; (5) M20; (4) M25; (2) M32 |
| Model (EF000010) | |
| Package Quantity | 1 |
| Packing Quantity | 1.0000 |
| Width (EF000008) | None mm |
| Height (EF000040) | None mm |
| Enclosure Material | Mild Steel |
| Material (EF002169) | |
| Atributo del producto | Valor |
| Thread type (EF001758) | |
| Pre-stamping (EF001039) | |
| Gland Plate Opening Depth | 96 mm |
| Gland Plate Opening Width | 510 mm |
| Standard Packaging Quantity | 1.0000 |
| Surface protection (EF000139) | |
| Number of connector holes (EF005554) | |
| Degree of protection (NEMA) (EF011959) | |
| Suitable for nominal thread metric/PG (EF012565) |
Product Description
Plate knockouts pre-punched, RAL7035
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
