AF75-40-00RT

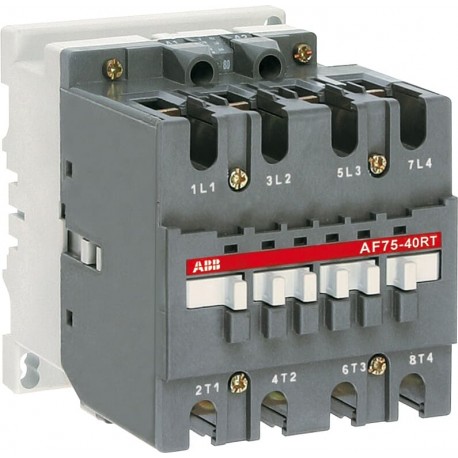

AF75-40-00RT 1SBL417210R7000 ABB AF75-40-00RT 100-250V 50Hz / 100-250V 60Hz / 100-250V DC Contactor
$0.00USD
4269 in stock
Key Specifications
:Main Circuit 50 / 60 Hz
ETIM 4:EC000066 - Magnet contactor, AC-switching
ETIM 5:EC000066 - Magnet contactor, AC-switching
ETIM 6:EC000066 - Power contactor, AC switching
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Main Circuit 50 / 60 Hz | |
| ETIM 4 | EC000066 - Magnet contactor, AC-switching |
| ETIM 5 | EC000066 - Magnet contactor, AC-switching |
| ETIM 6 | EC000066 - Power contactor, AC switching |
| ETIM 7 | EC000066 - Power contactor, AC switching |
| ETIM 8 | EC000066 - Power contactor, AC switching |
| UNSPSC | 39121529 |
| eClass | V11.0 : 27371003 |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1, IEC 60077-1 (applicable parts), IEC 60077-2 (applicable parts), EN 50155 (applicable parts), TR CU 001/2011 (on request), IEC 61373, For compliance confirmation on applicable parts based on your application and combination, please consult your ABB sales representatives. |
| RoHS Status | Following EU Directive 2011/65/EU |
| Terminal Type | Ring-Tongue Terminals |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| UL Certificate | UL-US-L312527-291-50119991-3 |
| WEEE B2C / B2B | Business To Business |
| CCC Certificate | CCC_2018010304134049 |
| CQC Certificate | CQC2018010304134049 |
| GOST Certificate | GOST_POCCFRME77B07175 |
| RoHS Information | 2CMT2021-006277 |
| Product Net Width | 92 mm |
| REACH Declaration | 2CMT2021-006202 |
| Product Net Height | 110 mm |
| Product Net Weight | 1.42 kg |
| Package Level 1 EAN | 3471522245502 |
| Rated Frequency (f) | Control Circuit 50 / 60 Hz |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP10 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Customs Tariff Number | 85364900 |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 142 mm |
| Package Level 2 Units | box 8 piece |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 136 mm |
| Ambient Air Temperature | Close to Contactor for Storage -60 ... +80 °C |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Instructions and Manuals | FPTC407767P0002 |
| General Use Rating UL/CSA | (600 V AC) 105 A |
| Maximum Breaking Capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 1300 A |
| Rated Operational Voltage | Main Circuit 690 V |
| Number of Main Contacts NC | 0 |
| Number of Main Contacts NO | 4 |
| Object Classification Code | Q |
| Product Net Depth / Length | 119.5 mm |
| Package Level 1 Gross Weight | 1.42 kg |
| Package Level 2 Gross Weight | 11.36 kg |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-4-1 1000 V |
| Declaration of Conformity - CE | 1SBD250803U1000 |
| Package Level 1 Depth / Length | 190 mm |
| Declaration of Conformity - CCC | 2020980304001624 |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Declaration of Conformity - UKCA | 1SBD250820U1000 |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V |
| Data Sheet, Technical Information | 1SNC001003C0202 |
| Mounting by Screws (not supplied) | 2 x M6 screws placed diagonally |
| Rated Operational Power AC-3 (Pe) | (415 V) 40 kW |
| Rated Control Circuit Voltage (Uc) | 50 Hz 100 ... 250 V |
| Rated Operational Current AC-1 (Ie) | (690 V) 40 °C 125 A |
| Rated Operational Current AC-3 (Ie) | (415 V) 55 °C 72 A |
| Rated Operational Current DC-1 (Ie) | (110 V) 2 Poles in Series, 40 °C 120 A |
| Rated Operational Current DC-3 (Ie) | (110 V) 2 Poles in Series, 40 °C 120 A |
| Rated Operational Current DC-5 (Ie) | (110 V) 2 Poles in Series, 40 °C 100 A |
| Maximum Operating Altitude Permissible | Without Derating 3000 m |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Shock and Vibration Withstand acc. to IEC 61373 | Category 1, Class B |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 650 A |
