AD-55A

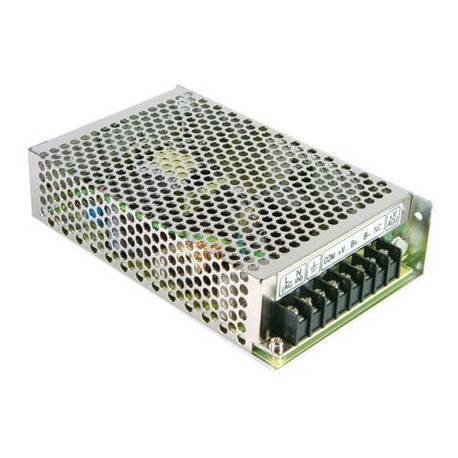

AD-55A MEANWELL AC-DC Enclosed power supply with UPS function, Output 13.8VDC / 4A +13.4VDC / 0.23A
$0.00USD
3519 in stock
Key Specifications
Oh:1, 2, 3
Name:AD-55A
Stock:Yes
Format:Box
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Oh | 1, 2, 3 |
| Name | AD-55A |
| Stock | Yes |
| Format | Box |
| Series | AD-55 |
| Output 1 | +12 |
| Approvals | CE, UL |
| Power (W) | 51,30 |
| Subformato | Grid |
| Width (mm) | 97.00 |
| Height (mm) | 38.00 |
| Applications | Building automation, Industrial, Telecommunications |
| Battery type | Lead, AGM, Wet |
| Manufacturer | MEAN WELL |
| Product type | UPS |
| Charge stages | Two |
| Isolation (V) | 3.000,00 |
| Peak Power (W) | 51.3 |
| Input connector | Screw-Type |
| Long/Background | 159.00 |
| Long Description | UPS input switches and output continuously.Format box of the grid.Range of universal input88-264vac. 47-63Hz.Output voltagefor the loadwith power: 13,8 Vdc.Output voltage in battery mode: voltage of the battery.Output intensity3.5 To. Peak 4A.Float voltageadjustable12-14,5 Vdc. (The setting of the float voltage also adjusts the output voltage of power supply).Intensity of load0,23 To.Power:51,3 W.Type of batteries:Gel, AGM and wet.Battery capacity:1-3Ah.Efficiency typical:71%at full load with power.Protection against deep discharge of the batteries.No cut in output in the step feed mode to battery mode. 0ms transfer time.LED to indicate proper output DC-OK.Working temperature: from-10up+60 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height) [mm]:159 x 97 x 38.2 years of warranty.Manufacturer: MEAN WELL.AD series-55 are Ups input switches and output continuously. When there is mains power the computer gives a stable output while charging the battery. In case of failure of power supply maintains the output fed from the battery. These power supplies are suitable for security applications, access control and any application that must continue to function even with a power outage.These are protected against overloads, short-circuit in the output, sobrentesión output, low battery and reverse battery polarity (by fuse). |
| Output connector | Screw-Type |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 2,00 |
| Country of Origin | China |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
UPS input switches and output continuously.
