ACM08060R5

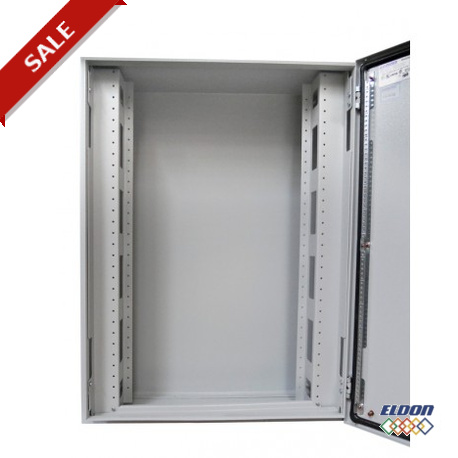

ACM08060R5 ELDON Modular support, 800x600
$0.00USD
4988 in stock
Key Specifications
Width:600 mm
Height:800 mm
Material::1.35 mm steel plate. Structure powder paint, RAL 7035.
Description::Support kit for the mounting of the modular panels and components by steps of 150 mm. A space for equipment of 46 mm high is provided. Independent of the depth of the enclosure, the system can be used in combination with glazed door and a mounting plate is still usable. 50 mm of space is provided for the equipment between the door and the panels. In order to allow easy installation of the equipment and the wiring, the system can be assembled, fully equipped and pre-wired outside the enclosure, and then fitted into the enclosure. Cut-outs are provided on the sides of the vertical profiles for cable routing. The kit contains two vertical profiles, top and bottom blanking plates and fixing material.
Supplier Information
ELDON
Products: 4827
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Width | 600 mm |
| Height | 800 mm |
| Material: | 1.35 mm steel plate. Structure powder paint, RAL 7035. |
| Description: | Support kit for the mounting of the modular panels and components by steps of 150 mm. A space for equipment of 46 mm high is provided. Independent of the depth of the enclosure, the system can be used in combination with glazed door and a mounting plate is still usable. 50 mm of space is provided for the equipment between the door and the panels. In order to allow easy installation of the equipment and the wiring, the system can be assembled, fully equipped and pre-wired outside the enclosure, and then fitted into the enclosure. Cut-outs are provided on the sides of the vertical profiles for cable routing. The kit contains two vertical profiles, top and bottom blanking plates and fixing material. |
| N° of modules | 24 |
| Pack quantity: | 1 kit with fitting material. |
| Steps of 50 mm | 15 |
| Characteristics |
