ACA05030

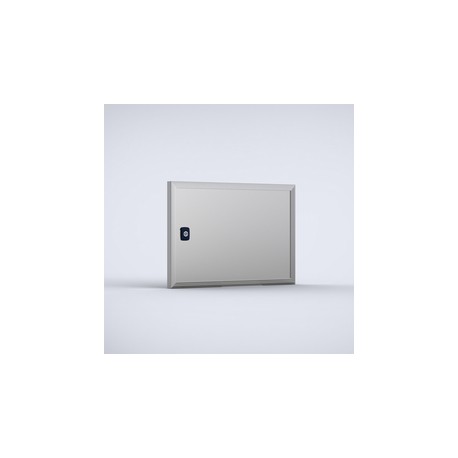

ACA05030 ELDON Display panel, 500x300 ACA05030
$0.00USD
4420 in stock
Key Specifications
Width:300 mm
Height:500 mm
No Locks:1
Characteristics:
Supplier Information
ELDON
Products: 4827
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Width | 300 mm |
| Height | 500 mm |
| No Locks | 1 |
| Characteristics | |
| Viewing AreaWidth | 226 mm |
| Viewing AreaHeight | 426 mm |
| Benefit: (Features) | Components that are mounted within the aluminium panel are protected by the panel's frame. As the frame is removable, the display panel can be machined even by machinery that is limited to working on flat surfaces. |
| Feature: (Features) | Display aluminium panel with protection frame to replace a standard wall mounted door. |
| Mounting PlateWidth | 226 mm |
| Mounting PlateHeight | 426 mm |
| Advantage: (Features) | The protection frame is raised 23.5 mm from the surface of the aluminium panel. The aluminium panel can be removed from the protection frame for machining or screen printing. |
| Finish: (Technical data) | Anodised aluminium. |
| Material: (Technical data) | Aluminium. |
| Protection: (Technical data) | Complies with IP 54. |
| Description: (Technical data) | For controls, meters, indication lamps etc. The mounted components are protected by a 23.5 mm high frame. The aluminium panel is 3 mm thick and can be removed for drilling or screen printing. The double-bit 3 mm lock can be replaced by any optional insert or handle. |
| Pack quantity: (Technical data) | 1 door with mounting accessories. |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
This frame protects controls, meters, lamps, etc. as it is raised 23.5 mm from the enclosure. The panel can be easily machined since the frame is removable.
