AB1/AP-3A

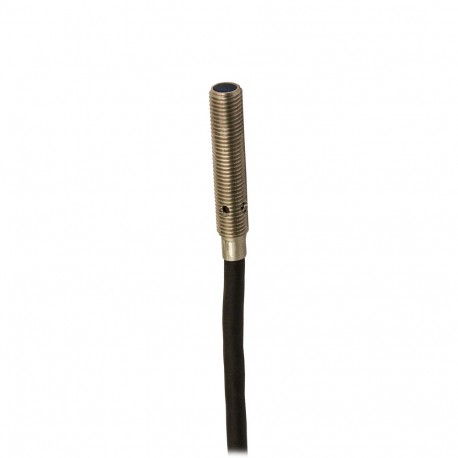

AB1/AP-3A MICRO DETECTORS Inductive sensor M4 Sensing distance 1 mm NO/PNP cable 2m axial
$0.00USD
3090 in stock
Key Specifications
Size:M4 x 0.5 / L = 22mm
Weight:30g
Mounting:Shielded
Hysteresis:1 ... 20%
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Size | M4 x 0.5 / L = 22mm |
| Weight | 30g |
| Mounting | Shielded |
| Hysteresis | 1 ... 20% |
| Connections | Cable PUR 2m |
| Output type | PNP |
| Load current | ≤ 100mA |
| Body material | STAINLESS steel AISI303 |
| Repeatability | 5% (UB 24V Ta=23°C ±5°C) |
| Certifications | CEUL |
| LED indicators | Yellow LED output status |
| Supply voltage | 10 - 30Vdc |
| Leakage current | ≤ 10µA |
| Output function | NO |
| Working distance | 0...0.81 mm |
| Correction factor | copper: 0,3 ± 10% / aluminium: 0,22 ± 10% / brass: 0,32 ± 10% / STAINLESS steel: 0,57 ± 10% |
| Temperature drift | < 10% |
| Tightening torque | 1.5 Nm |
| Vacuum adsorption | 10mA |
| Obstacle reference | 4x4mm FE360 |
| Shock and vibration | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| Switching frequency | 3.5 kHz |
| Accessories included | 2 nuts M4x0,5 |
| Degree of Protection | IP 67 (EN60529) |
| Material active part | PBT |
| Operating temperature | -25°C...+70°C |
| Maximum residual ripple | ≤10% |
| Detection distance rated | 1mm |
| Delay to the availability | ≤ 50ms |
| Protection, short-circuit | You |
| Reverse polarity protection | You |
| Electromagnetic compatibility | IEC 60947-5-2 |
| Protection for inductive loads | You |
| The fall of the output voltage | ≤ 1.5 V @100mA |
Product Description
AB1/AP-3A Inductive sensor M4 Sn 1 mm NO/PNP cable 2m axial
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
