AB-STI/3

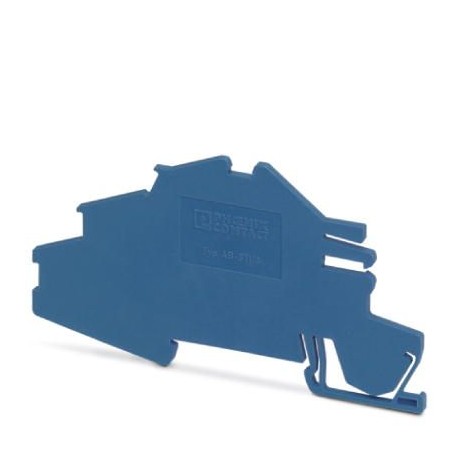

AB-STI/3 3030831 PHOENIX CONTACT Support bracket
$0.00USD
4643 in stock
Key Specifications
GTIN:4017918193089
Orderkey:3030831
Catalog page:Page 288 (C-3-2013)
Packing unit:10 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918193089 |
| Orderkey | 3030831 |
| Catalog page | Page 288 (C-3-2013) |
| Packing unit | 10 pc |
| R22 (Dimensions) | HL 1 - HL 3 |
| R23 (Dimensions) | HL 1 - HL 3 |
| R24 (Dimensions) | HL 1 - HL 3 |
| R26 (Dimensions) | HL 1 - HL 3 |
| Country of origin | DE (Germany) |
| Color (Dimensions) | blue |
| Result (Dimensions) | Test passed |
| Class F (Dimensions) | 2 |
| Class I (Dimensions) | 2 |
| Custom tariff number | 85389099 |
| Material (Dimensions) | PA |
| Minimum order quantity | 10 pc |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Width (a) (Key Commercial Data) | 2 mm |
| Height (c) (Key Commercial Data) | 52 mm |
| Length (b) (Key Commercial Data) | 97 mm |
| Weight per Piece (excluding packing) | 7.420 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Smoke gas toxicity (SMP 800C) (Dimensions) | passed |
| Oxygen index (DIN EN ISO 4589-2) (Dimensions) | >32 % |
| Surface flammability (ASTM E 162) (Dimensions) | passed |
| Flammability rating according to UL 94 (General) | V0 |
| Flame test method (DIN EN 60695-11-10) (Dimensions) | V0 |
| Flammability rating according to UL 94 (Dimensions) | V0 |
| Heat dissipation calorimetric (ASTM E 1354) (Dimensions) | 27,5 MJ/kg |
| Specific optical density of smoke (ASTM E 662) (Dimensions) | passed |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 (General) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 (General) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 (General) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 (General) | HL 1 - HL 3 |
Product Description
Easel, Busbar support, place every 20 cm, pitch: 200 mm, length: 97 mm, width: 2 mm, height: 52 mm, number of poles: 1, color: blue
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
