AB-PTI/3

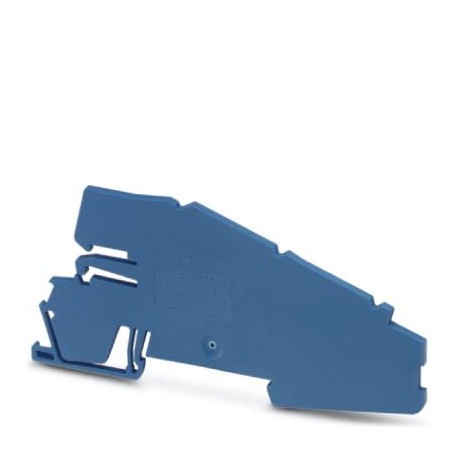

AB-PTI/3 3213974 PHOENIX CONTACT Support bracket
$0.55USD
18231 in stock
Key Specifications
GTIN:4046356609821
Orderkey:3213974
Catalog page:Page 86 (C-1-2017)
Packing unit:50 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356609821 |
| Orderkey | 3213974 |
| Catalog page | Page 86 (C-1-2017) |
| Packing unit | 50 pc |
| R22 (Dimensions) | HL 1 - HL 3 |
| R23 (Dimensions) | HL 1 - HL 3 |
| R24 (Dimensions) | HL 1 - HL 3 |
| R26 (Dimensions) | HL 1 - HL 3 |
| Country of origin | PL (Poland) |
| Color (Dimensions) | blue |
| Result (Dimensions) | Test passed |
| Class F (Dimensions) | 2 |
| Class I (Dimensions) | 2 |
| Custom tariff number | 85472000 |
| Material (Dimensions) | PA |
| Minimum order quantity | 50 pc |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Width (a) (Key Commercial Data) | 2 mm |
| Height (c) (Key Commercial Data) | 46 mm |
| Length (b) (Key Commercial Data) | 103 mm |
| Weight per Piece (excluding packing) | 7.790 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Smoke gas toxicity (SMP 800C) (Dimensions) | passed |
| Oxygen index (DIN EN ISO 4589-2) (Dimensions) | >32 % |
| Surface flammability (ASTM E 162) (Dimensions) | passed |
| Flammability rating according to UL 94 (General) | V0 |
| Flame test method (DIN EN 60695-11-10) (Dimensions) | V0 |
| Flammability rating according to UL 94 (Dimensions) | V0 |
| Heat dissipation calorimetric (ASTM E 1354) (Dimensions) | 28 MJ/kg |
| Specific optical density of smoke (ASTM E 662) (Dimensions) | passed |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 (General) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 (General) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 (General) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 (General) | HL 1 - HL 3 |
Product Description
Easel, Busbar support, place every 20 cm, pitch: 200 mm, length: 103 mm, width: 2 mm, height: 46 mm, number of poles: 1, color: blue
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
