AB-PTI 16-NLS RD

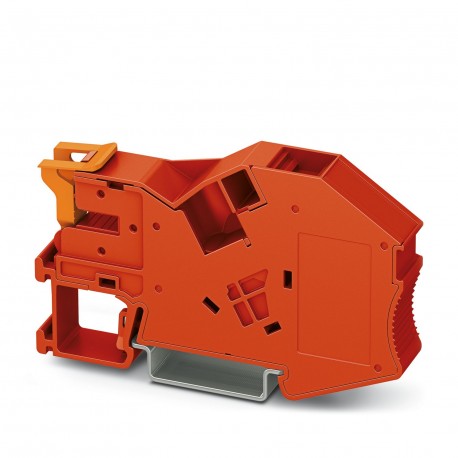

AB-PTI 16-NLS RD 1030140 PHOENIX CONTACT Easel, length: 81,9 mm, width: 12,2 mm height: 46,8 mm, color: red
$0.00USD
3043 in stock
Key Specifications
Color:red (RAL 3001)
Depth:46.8 mm
Width:12.2 mm
Height:81.9 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Color | red (RAL 3001) |
| Depth | 46.8 mm |
| Width | 12.2 mm |
| Height | 81.9 mm |
| Material | PA |
| Product type | Support bracket |
| Article revision | 00 |
| Depth on NS 35/15 | 56 mm |
| Depth on NS 35/7,5 | 48.5 mm |
| Note on application | with end bracket function |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Ambient temperature (operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Flammability rating according to UL 94 | V0 |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Static insulating material application in cold | -60 °C |
| Relative insulation material temperature index (Elec., UL 746 B) | 125 °C |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C |
Product Description
Support bracket, depth: 46.8 mm, width: 12.2 mm, height: 81.9 mm, color: red
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
