A165E-LS-24D-02

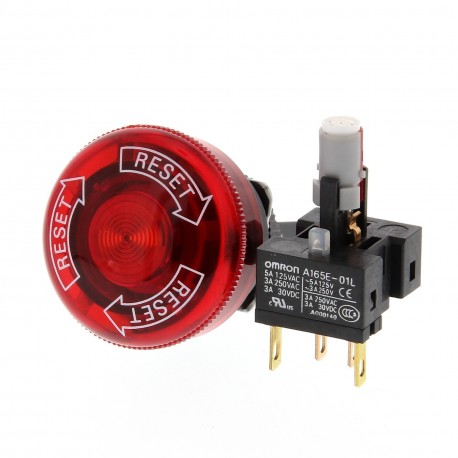

A165E-LS-24D-02 A16E7004A 103317 OMRON Emergency mushroom 16mm DPST-NC LED
$44.65USD
259 in stock
Key Specifications
Item ():Emergency stop switch
Features ():Characteristics
Durability ():Mechanical
Electrical ():100,000 operations min.
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item () | Emergency stop switch |
| Features () | Characteristics |
| Durability () | Mechanical |
| Electrical () | 100,000 operations min. |
| Pretravel (PT) () | 3.5±0.5 mm(3±0.5 mm In case of A165E_U series) |
| Ambient temperature () | Operating: -10 to 55°C (with no icing or condensation)Storage: -25 to 65°C (with no icing or condensation) |
| Dielectric strength () | 1,000 VAC, 50/60 Hz for 1 min between terminals of same polarity2,000 VAC, 50/60 Hz for 1 min between terminals of different polarity and also between each terminal and ground1,000 VAC, 50/60 Hz for 1 min between lamp terminals1 |
| 30 VDC (Specifications) | 3 A |
| 125 VAC (Specifications) | 5 A |
| 250 VAC (Specifications) | 3 A |
| Insulation resistance () | 100 MΩ min. (at 500 VDC) |
| Operating force (OF) max. () | 14.7 N |
| Releasing force (RF) min. () | 0.1 N·m |
| A165E series (Specifications) | A165E_-U series |
| Rated voltage (Specifications) | Resistive load |
| Allowable operating frequency () | Mechanical |
| LED (Specifications & ordering info) | 24 VDC |
| Protection against electric shock () | Class II |
| Item (Specifications & ordering info) | Type |
| None (Specifications & ordering info) | - |
| DPST-NC (Specifications & ordering info) | A165E-M-02 |
| Minimum applicable load (Specifications) | 150 mA at 5 VDC |
| TPST-NC (Specifications & ordering info) | A165E-M-03U |
| Switches (Specifications & ordering info) | Rated voltage |
| Extractor (Specifications & ordering info) | - |
| Panel plug (Specifications & ordering info) | Round |
| Yellow plate (Specifications & ordering info) | Yellow, 45 dia. |
| Tightening tool (Specifications & ordering info) | - |
Product Description
Emergency stop switch, illuminated, 30mm dia, push-lock/turn-reset, DPST-NC, 24 VDC
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Switches
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
