A165-CTA

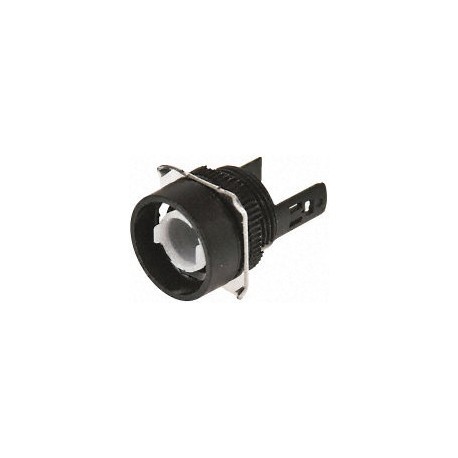

A165-CTA A16 1011R 160035 OMRON IP65 round/alternating pushbutton housing
$6.06USD
1680 in stock
Key Specifications
Item ():Screw-less clamp
Solid wire ():0.5 mm dia.
Tensile strength ():10 N
SPDT (Specifications):DPDT
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item () | Screw-less clamp |
| Solid wire () | 0.5 mm dia. |
| Tensile strength () | 10 N |
| SPDT (Specifications) | DPDT |
| Recommended wire size () | 0.5 mm2 twisted wire or 0.8 mm dia. solid wire |
| Length of exposed wire () | 10 ±1 mm |
| (Specifications & ordering info) | 100 V |
| Total travel (TT) (Specifications) | Approx. 3 mm |
| LED (Specifications & ordering info) | Red |
| Pretravel (PT) max. (Specifications) | 2.5 mm |
| Usable wires and tensile strength () | Twisted wire |
| Blue (Specifications & ordering info) | A16-5DA |
| DPDT (Specifications & ordering info) | A16-T1-2 |
| Name (Specifications & ordering info) | Appearance |
| Type (Specifications & ordering info) | 5 VAC/VDC |
| 200 V (Specifications & ordering info) | A16-T2-2S |
| 5 VDC (Specifications & ordering info) | 12 VDC |
| Green (Specifications & ordering info) | A16-5DSG |
| Round (Specifications & ordering info) | A165-CTA |
| White (Specifications & ordering info) | A165L-JW |
| Lock stroke (LTA) min. (Specifications) | 0.5 mm |
| Square (Specifications & ordering info) | A165-CAA |
| Weight (Specifications & ordering info) | Approx. 10 g (in the case of a lighted DPDT switch with solder terminals) |
| White1 (Specifications & ordering info) | A16-5DSW |
| Yellow (Specifications & ordering info) | A16-5DSY |
| Operating characteristics (Specifications) | Pushbutton switch |
| Operating force (OF) max. (Specifications) | 2.94 N |
| Releasing force (RF) min. (Specifications) | 0.29 N |
| Appearance (Specifications & ordering info) | Classification |
| Durability (Specifications & ordering info) | Mechanical |
| Electrical (Specifications & ordering info) | 100,000 operations min. |
| Dust covers (Specifications & ordering info) | |
| Non-lighted (Specifications & ordering info) | Black |
| Panel plugs (Specifications & ordering info) | |
| Pure yellow (Specifications & ordering info) | A165L-JPY |
| Rectangular (Specifications & ordering info) | Square |
| Switch guards (Specifications & ordering info) | |
| For round models (Specifications & ordering info) | A16ZT-3003 |
| For square models (Specifications & ordering info) | A16ZA-3003 |
| Incandescent lamp (Specifications & ordering info) | A16-5 |
| Alternate operation (Specifications & ordering info) | Rectangular (2-way guard) |
| Ambient temperature (Specifications & ordering info) | Operating: -10 to 55°C (with no icing or condensation)Storage: -25 to 65°C (with no icing or condensation) |
| Size in mm (H×W×D) (Specifications & ordering info) | Round/square: 18×18×28.5rectangular: 18×24×28.5 |
| For square and round models (Specifications & ordering info) | A16ZA-5050 |
| Allowable operating frequency (Specifications & ordering info) | Mechanical |
| Non-lighted/incandescent lamp (Specifications & ordering info) | Green |
| Non-lightedLEDIncandescent lamp (Specifications & ordering info) | Red |
Product Description
IP65 case for pushbutton unit, round, latching
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Type
