In Stock Hot Product
A-INL-PG9-P-BK

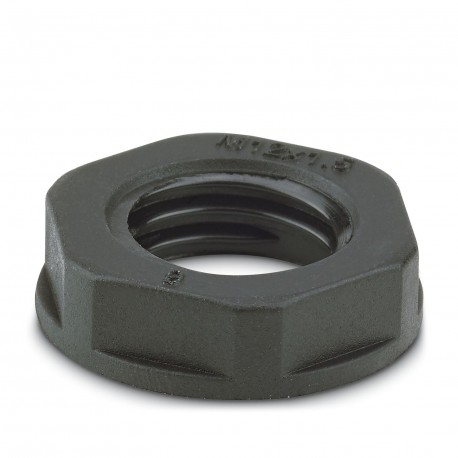

A-INL-PG9-P-BK 1424559 PHOENIX CONTACT Counter nut
$0.00USD
3722 in stock
Key Specifications
Length:5 mm
Diameter:15.2 mm
Material:PA 6.6 GF
Halogen-free:yes
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Length | 5 mm |
| Diameter | 15.2 mm |
| Material | PA 6.6 GF |
| Halogen-free | yes |
| Product type | Flat nut |
| Dimensional drawing | |
| Wrench size, counter nut | 22 mm |
| Hexagon angular dimension | 24 mm |
| Connecting thread diameter | 15.2 mm |
| Thread type connection side | Pg9 |
| Ambient temperature (operation) | -40 °C ... 100 °C |
| Flammability rating according to UL 94 | V2 |
Product Description
Lock nut, material: PA 6 GF 30, connection thread: Pg9, color: black
