A 6-10

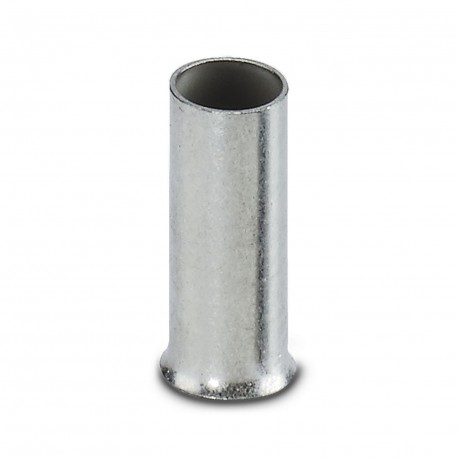

A 6 -10 3202520 PHOENIX CONTACT Ferrule
$0.04USD
250032 in stock
Key Specifications
GTIN:4017918157227
Orderkey:3202520
Catalog page:Page 480 (C-3-2017)
Packing unit:500 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918157227 |
| Orderkey | 3202520 |
| Catalog page | Page 480 (C-3-2017) |
| Packing unit | 500 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85369010 |
| Minimum order quantity | 500 pc |
| Color (Ambient conditions) | silver |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Coating (Ambient conditions) | tin-plated (galvanic) |
| Material (Ambient conditions) | CU-DHP |
| Length (b) (Key Commercial Data) | 10 mm |
| Short-term temperature (Dimensions) | 120 °C |
| Weight per Piece (excluding packing) | 0.200 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Ferrule diameter (Key Commercial Data) | 3.5 mm |
| Conductor category (Ambient conditions) | Stranded conductors, class 2, 5, 6 / B, C, K, M |
| Max. permanent temperature (Dimensions) | 105 °C |
| Connection in acc. with standard (General) | CSA |
| Sleeve wall thickness (Key Commercial Data) | 0.2 mm |
| Maximum stripping length (Key Commercial Data) | 10 mm |
| Inner dimension of the insulating collar (d) (Key Commercial Data) | 4.7 mm |
Product Description
Toe cap, length: 10 mm, color: silver
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
