A 10-25

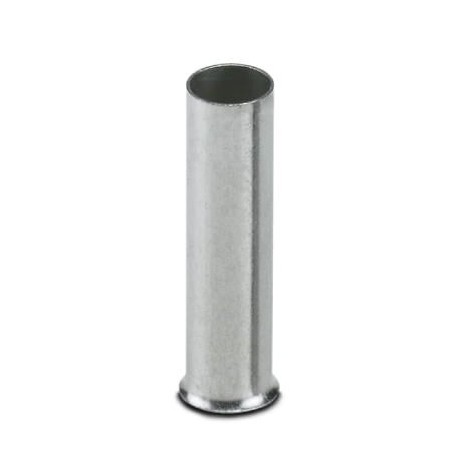

A 10-25 1090628 PHOENIX CONTACT Ferrule, length: 25 mm, color: silver
$0.00USD
3296 in stock
Key Specifications
GTIN:4055626901244
Orderkey:1090628
Catalog page:Page 480 (C-3-2019)
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626901244 |
| Orderkey | 1090628 |
| Catalog page | Page 480 (C-3-2019) |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| ETIM 6.0 (eCl@ss) | EC000005 |
| ETIM 7.0 (eCl@ss) | EC000005 |
| Custom tariff number | 85369010 |
| Minimum order quantity | 500 pc |
| Color (Ambient conditions) | silver |
| Coating (Ambient conditions) | tin-plated (galvanic) |
| eCl@ss 9.0 (Classifications) | 27400201 |
| Material (Ambient conditions) | CU-DHP |
| Length (b) (Key Commercial Data) | 25 mm |
| Short-term temperature (Dimensions) | 120 °C |
| Weight per Piece (excluding packing) | 0.000 g |
| Ferrule diameter (Key Commercial Data) | 4.5 mm |
| Conductor category (Ambient conditions) | Stranded conductors, class 2, 5, 6 / B, C, K, M |
| Max. permanent temperature (Dimensions) | 105 °C |
| Sleeve wall thickness (Key Commercial Data) | 0.2 mm |
| Inner dimension of the insulating collar (d) (Key Commercial Data) | 5.8 mm |
Product Description
Toe cap, colour: silver
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
