A 0,5-10

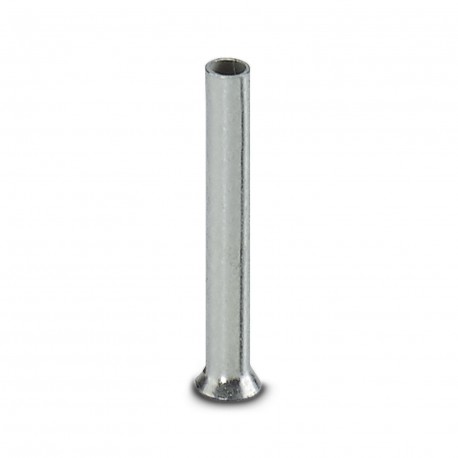

A 0,5-10 3202494 PHOENIX CONTACT Ferrule
$0.02USD
500050 in stock
Key Specifications
Color:silver-colored
Coating:tin-plated (galvanic)
Material:CU-DHP
Components:free from silicone and halogen
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Color | silver-colored |
| Coating | tin-plated (galvanic) |
| Material | CU-DHP |
| Components | free from silicone and halogen |
| Product type | Cable end sleeve |
| Sleeve length | 10 mm |
| Article revision | 05 |
| Ferrule diameter | 1 mm |
| Stripping length | 10 mm |
| Conductor category | stranded conductors, class 2, 5, 6 / B, C, K, M |
| Dimensional drawing | |
| Length contact range | 10 mm |
| Permanent temperature | 105 °C |
| Sleeve wall thickness | 0.15 mm |
| Short-term temperature | 120 °C |
| Surface characteristics | Tin-plated |
| Maximum stripping length | 10 mm |
| Design according to standard | DIN 46228-1, UL 486F-A |
| Conductor cross section AWG max. | 20 |
| Conductor cross section flexible max. | 0.5 mm² |
| Inner dimensions of the insulating collar | 2.1 mm |
Product Description
Toe cap, length: 10 mm, color: silver
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
