A 0,25-7

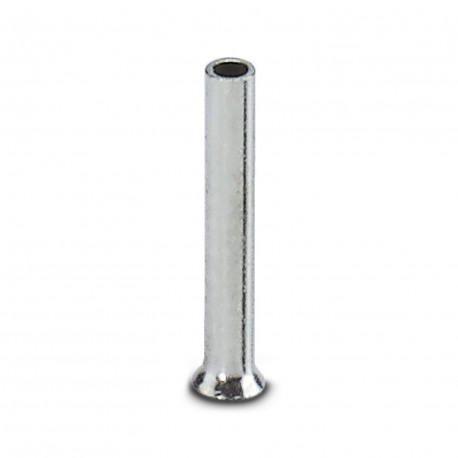

A 0,25-7 3202478 PHOENIX CONTACT Ferrule
$0.03USD
333365 in stock
Key Specifications
Color:silver-colored
Coating:tin-plated (galvanic)
Material:CU-DHP
Product type:Cable end sleeve
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Color | silver-colored |
| Coating | tin-plated (galvanic) |
| Material | CU-DHP |
| Product type | Cable end sleeve |
| Sleeve length | 7 mm |
| Article revision | 02 |
| Ferrule diameter | 0.8 mm |
| Stripping length | 7 mm |
| Dimensional drawing | |
| Length contact range | 7 mm |
| Permanent temperature | 105 °C |
| Sleeve wall thickness | 0.15 mm |
| Short-term temperature | 120 °C |
| Surface characteristics | Tin-plated |
| Maximum stripping length | 7 mm |
| Conductor cross section AWG max. | 24 |
| Conductor cross section flexible max. | 0.25 mm² |
| Inner dimensions of the insulating collar | 1.7 mm |
Product Description
Toe cap, length: 7 mm, color: silver
