98-CAL010

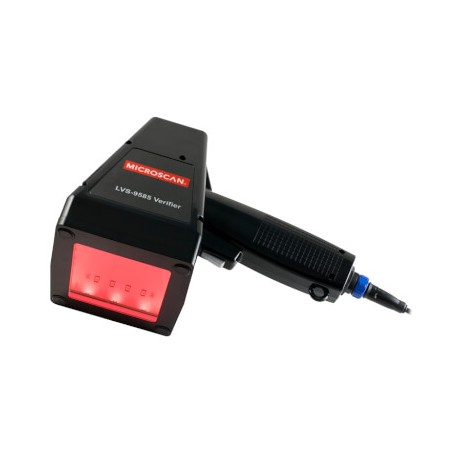

98-CAL010 682380 OMRON LVS Calibration Conformance Test Card, Datamatrix dated
$0.00USD
4670 in stock
Key Specifications
Depth (LVS-9585 Handheld DPM Barcode Verifier):139.7 mm (5.5 inches)
Width (LVS-9585 Handheld DPM Barcode Verifier):120.6 mm (4.75 inches)
Height (LVS-9585 Handheld DPM Barcode Verifier):215.9 mm (8.5 inches)
Storage (LVS-9585 Handheld DPM Barcode Verifier):20% to 95% (non-condensing)
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Depth (LVS-9585 Handheld DPM Barcode Verifier) | 139.7 mm (5.5 inches) |
| Width (LVS-9585 Handheld DPM Barcode Verifier) | 120.6 mm (4.75 inches) |
| Height (LVS-9585 Handheld DPM Barcode Verifier) | 215.9 mm (8.5 inches) |
| Storage (LVS-9585 Handheld DPM Barcode Verifier) | 20% to 95% (non-condensing) |
| Electrical (LVS-9585 Handheld DPM Barcode Verifier) | USB powered 5 VDC @ 180 mA |
| Calibration (LVS-9585 Handheld DPM Barcode Verifier) | EAN/UPC Calibrated Conformance Test Card (includedwith system) |
| Description (LVS-9585 Handheld DPM Barcode Verifier) | Order code |
| Light Source (LVS-9585 Handheld DPM Barcode Verifier) | Red Dome (660 nm); White Dome, 30° Angle |
| Video Camera (LVS-9585 Handheld DPM Barcode Verifier) | 5.0 megapixelObject distance:contact |
| Field of View (LVS-9585 Handheld DPM Barcode Verifier) | 76 mm (3.0 inches) horizontal57.15 mm (2.2 inches) vertical |
| License upgrade (LVS-9585 Handheld DPM Barcode Verifier) | Order code |
| Relative Humidity (LVS-9585 Handheld DPM Barcode Verifier) | 20% to 80% (operating) |
| Unpackaged Weight (LVS-9585 Handheld DPM Barcode Verifier) | 0.68 kg (1lb. 8 oz.) |
| Operating Temperature (LVS-9585 Handheld DPM Barcode Verifier) | 4° C (40° F) to 46° C (115° F) |
| Minimum PC Requirements (LVS-9585 Handheld DPM Barcode Verifier) | Windows® 7, Windows® 8.1 or Windows® 10Intel®Core™ i3 or higher4 GB RAM800 × 600 screen resolution |
| ISO Conformance Standards (LVS-9585 Handheld DPM Barcode Verifier) | ISO/IEC 15415, 15416, 15418ISO/IEC15426-1, 15426-2ISO/IEC TR 29158 (DPM Cat 0, 1, 2)Allsupported ISO/IEC Symbology Specifications |
| LVS Conformance Test Card, Datamatrix undated (LVS-9585 Handheld DPM Barcode Verifier) | 98-CAL010-01 |
| LVS-95xx Software Upgrade Option: AutomaticLogin Feature (LVS-9585 Handheld DPM Barcode Verifier) | 98-SOF0056 |
| LVS-9585 Handheld, 1D, 2D & DPM Dome and30 degree lighting (LVS-9585 Handheld DPM Barcode Verifier) | 9585-DPM |
| LVS Calibration Conformance Test Card, 9570/9580/9510EAN/UPC undated (LVS-9585 Handheld DPM Barcode Verifier) | 98-CAL020-01 |
| LVS-9585 Handheld, 1D, 2D & DPM Dome and30 degree lighting, high density (LVS-9585 Handheld DPM Barcode Verifier) | 9585-DPM-HD |
| Software Upgrade Option: EAIV (Enhanced ApplicationIdentifier Verification) (LVS-9585 Handheld DPM Barcode Verifier) | 98-SOF0088 |
| Validation IQ-OQ Guidelines for v.4.3 and latersoftware (with 25 test cards) (LVS-9585 Handheld DPM Barcode Verifier) | 98-LVS0077 |
| LVS-95XX Validation Test Cards (IQ-OQ ChallengeLabels) for use with 98-LVS0077 (LVS-9585 Handheld DPM Barcode Verifier) | 98-LVS-VTC |
| Shipping weight2Includesall items packaged in shipping box, such as cables, manuals, etc. (LVS-9585 Handheld DPM Barcode Verifier) | Approx. 1.51 kg (3 lbs. 5oz) |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
The LVS-9585 handheld DPM barcode verifier adds advanced lighting options and powerful software functionality. The new auto-find feature enables users to automatically find the DPM symbol within the verifier field of view, and cycle through the lighting settings to find the lighting type that works best with the specific DPM marking and material substrate. The LVS-9585 can test both DPM parts as well as printed labels to a broad variety of global application standards, and provides comprehensive quality analysis and reporting features.
