98-CAL010-01

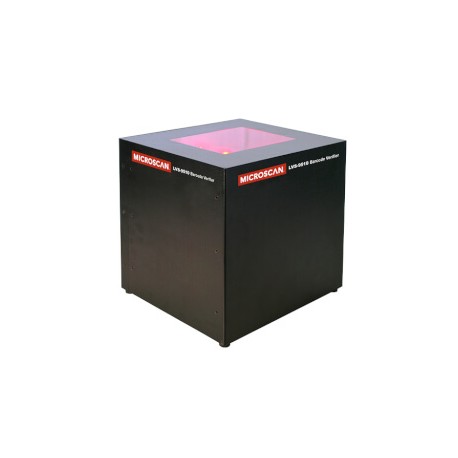

98-CAL010-01 682100 OMRON Card proof of compliance of calibration LVS, data matrix, undated
$0.00USD
3998 in stock
Key Specifications
Width (LVS-9510 Desktop Barcode Verifier):282 mm (11.125 inches)
Height (LVS-9510 Desktop Barcode Verifier):266.7 mm (10.5 inches)
Diameter (LVS-9510 Desktop Barcode Verifier):230 mm (9.062 inches)
Electrical (LVS-9510 Desktop Barcode Verifier):USB 2.0 portPower Supply 12 VDC@ 2.5 A (minimum)
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Width (LVS-9510 Desktop Barcode Verifier) | 282 mm (11.125 inches) |
| Height (LVS-9510 Desktop Barcode Verifier) | 266.7 mm (10.5 inches) |
| Diameter (LVS-9510 Desktop Barcode Verifier) | 230 mm (9.062 inches) |
| Electrical (LVS-9510 Desktop Barcode Verifier) | USB 2.0 portPower Supply 12 VDC@ 2.5 A (minimum) |
| Calibration (LVS-9510 Desktop Barcode Verifier) | One of the following:EAN/UPCCalibrated Conformance Test CardGS1-128 Calibrated Conformance Test Card |
| Description (LVS-9510 Desktop Barcode Verifier) | Order code |
| Light Source (LVS-9510 Desktop Barcode Verifier) | White LightRed (660 nm)filter. Optional clear window available for purchase. |
| Video Camera (LVS-9510 Desktop Barcode Verifier) | Monochrome5.0 megapixel |
| Viewing Window (LVS-9510 Desktop Barcode Verifier) | 127 × 177.79 mm (5 × 7 inches) |
| License upgrade (LVS-9510 Desktop Barcode Verifier) | Order code |
| Relative Humidity (LVS-9510 Desktop Barcode Verifier) | 20% to 70% (non-condensing) |
| Top Cover - Weight (LVS-9510 Desktop Barcode Verifier) | 162.65 g (5.5 oz) |
| Storage Temperature (LVS-9510 Desktop Barcode Verifier) | 0° C (32° F) to 40° C (104° F) |
| Operating Temperature (LVS-9510 Desktop Barcode Verifier) | 10° C (50° F) to 30° C (86° F) |
| Top Cover - Dimensions (LVS-9510 Desktop Barcode Verifier) | 139.7 × 190.5 mm (5.5 × 7.5 inches) |
| Minimum PC Requirements (LVS-9510 Desktop Barcode Verifier) | Windows® 7, Windows® 10Intel® Core™2 Duo Processor (or equivalent)2 GB RAM800 × 600 ResolutionOneavailable USB 2.0 port (additional ports required for each AuxiliaryReadhead in use) |
| ISO Conformance Standards (LVS-9510 Desktop Barcode Verifier) | ISO/IEC 15415, 15416, 15418ISO/IEC15426-1, 15426-2All supported ISO/IEC Symbology Specifications |
| LVS-9510 Verifier, 3" field of view (LVS-9510 Desktop Barcode Verifier) | 9510-5-3.0 |
| LVS-9510 Verifier, 4" field of view (LVS-9510 Desktop Barcode Verifier) | 9510-5-4.0 |
| LVS-9510 Verifier, 1.75" field ofview (LVS-9510 Desktop Barcode Verifier) | 9510-5-1.75 |
| LVS-9510 Verifier, 4.5" field of view (LVS-9510 Desktop Barcode Verifier) | 9510-5-4.5 |
| LVS-9510 Verifier, 6.25" field ofview (LVS-9510 Desktop Barcode Verifier) | 9510-5-6.250 |
| Unpackaged weight2StandaloneLVS-9510 unit (LVS-9510 Desktop Barcode Verifier) | 2.72 kg (6 pounds) |
| LVS Conformance Test Card, Datamatrix undated (LVS-9510 Desktop Barcode Verifier) | 98-CAL010-01 |
| LVS-95xx Software Upgrade Option: AutomaticLogin Feature (LVS-9510 Desktop Barcode Verifier) | 98-SOF0056 |
| LVS-9510 Software Upgrade Option: Multi-SectorVerification (LVS-9510 Desktop Barcode Verifier) | 98-SOF0039 |
| LVS Calibration Conformance Test Card, 128undated (for 9510-5-6.250) (LVS-9510 Desktop Barcode Verifier) | 98-CAL021-01 |
| LVS Calibration Conformance Test Card, 9570/9580/9510EAN/UPC undated (LVS-9510 Desktop Barcode Verifier) | 98-CAL020-01 |
| Software Upgrade Option: EAIV (Enhanced ApplicationIdentifier Verification) (LVS-9510 Desktop Barcode Verifier) | 98-SOF0088 |
| Validation IQ-OQ Guidelines for v.4.3 and latersoftware (with 25 test cards) (LVS-9510 Desktop Barcode Verifier) | 98-LVS0077 |
| LVS-95XX Validation Test Cards (IQ-OQ ChallengeLabels) for use with 98-LVS0077 (LVS-9510 Desktop Barcode Verifier) | 98-LVS-VTC |
| Shipping weight2Includesall items packaged in shipping box, such as power supply, cables,manuals, etc. (LVS-9510 Desktop Barcode Verifier) | 5.89 kg (13 pounds) |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
The LVS-9510 is unique in the world of ISO verification due to its ease of use and ability to verify linear (1D) and two-dimensional (2D) codes without any change of equipment. The system automatically determines the symbology and aperture needed to evaluate the code and identifies and highlights trouble spots. The LVS-9510 offers a “stitching” feature that allows grading of barcodes that are larger than the field of view.
