8WH9130-0DA00

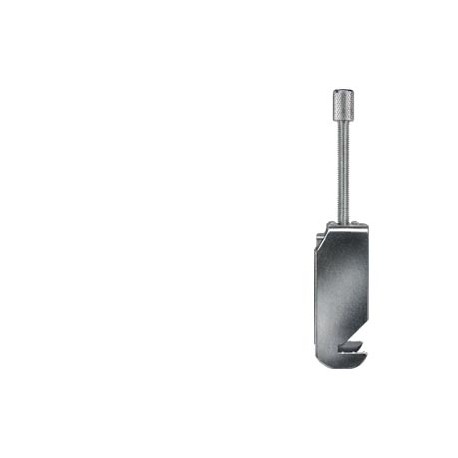

8WH9130-0DA00 SIEMENS shield terminal, for direct shield attachment on conductive mounting plates, diameter ..
$0.00USD
3717 in stock
Key Specifications
:
EAN:4001869345666
UPC:040892564099
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869345666 |
| UPC | 040892564099 |
| ETIM | 5 |
| UNSPSC | 14 |
| eClass | 6 |
| height | 105 mm |
| Group Code | P310 |
| ● maximum | 35 mm |
| ● minimum | 20 mm |
| Confirmation | |
| Metal Factor | None |
| Date5/17/2022 | |
| Product Group | 5558 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85369010 |
| Product family | 8WH terminals |
| Net Weight (kg) | 0,058 Kg |
| fastening method | direct assembly |
| Country of origin | Germany |
| Height (EF000040) | 105.0 |
| LKZ_FDB/ CatalogID | LV10.2 |
| Packaging Quantity | 1 |
| Packaging Dimension | 40,00 x 105,00 x 20,00 |
| Product Description | shield terminal, for direct shield attachment on conductive mounting plates, diameter 3-35mm |
| Minimum order quantity | 10 |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| terminal contact spacing | 40 mm |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | Direct mounting |
| Standard lead time ex-works | 7 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| type of electrical connection | screw-type terminals |
| Width/grid dimension (EF002522) | 40.0 |
| connectable cable cross-section | |
| Operating temperature (EF002393) | ['-', '-'] |
| Permitted cable diameter (EF008217) | ['20.0', '35.0'] |
| Article Number (Market Facing Number) | 8WH9130-0DA00 |
| Type of electric connection (EF003961) | Screw connection |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Explosion-tested version 'Ex e' (EF008498) | false |
| Region Specific PriceGroup / Headquarter Price Group | 12X / 1BT |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.04.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityotherConfirmationMiscellaneous | General Product Approval |
Product Description
Terminal for connection of shielded cables on mounting plate, diameter 3 - 35 mm ( ** ATTENTION : Price per 1 Unit and Minimum Quantity / Order Multiple 10 Units ** ). Cancelations and returns limited
