8WH9020-6JL01

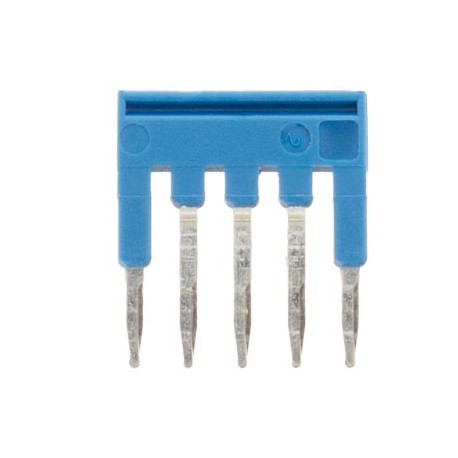

8WH9020-6JL01 SIEMENS 10 conn. combs 3.5 mm blue
$0.00USD
3003 in stock
Key Specifications
:
EAN:4001869552903
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869552903 |
| UPC | Not available |
| ETIM | 5 |
| color | blue |
| width | 34 mm |
| UNSPSC | 15 |
| eClass | 6 |
| Group Code | P310 |
| net weight | 2 g |
| accessories | cross connector |
| Confirmation | |
| Date5/8/2022 | |
| Metal Factor | None |
| Product Group | 5558 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85389099 |
| Product family | Ordering Data Overview |
| Net Weight (kg) | 0,003 Kg |
| contact spacing | 3.5 mm |
| Model (EF000010) | Transverse connector |
| fastening method | pluggable |
| Colour (EF000007) | Blue |
| Country of origin | Germany |
| LKZ_FDB/ CatalogID | LV10 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 3,00 x 33,75 x 18,20 |
| Product Description | 10 conn. combs 3.5 mm blue |
| operational current | |
| product designation | Accessory for terminal block |
| Insulated (EF000019) | true |
| design of the product | Jumper |
| ● for center supply | 17.5 A |
| Minimum order quantity | 50 |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Rated voltage (EF000228) | 250 |
| Export Control Regulations | AL : N / ECCN : N |
| Modular spacing (EF000394) | 3.5 |
| Mounting method (EF000003) | Pluggable |
| Rated current In (EF008250) | 17.5 |
| Standard lead time ex-works | 7 Day/Days |
| Surcharge for Raw Materials | None |
| number of bridged terminals | 10 |
| product feature / insulated | Yes |
| ● for single-sided supply | 17.5 A |
| Package size unit of measure | MM |
| With shock protection (EF008186) | true |
| product feature / touch protection | Yes |
| Number of bridged clamps (EF002550) | 10 |
| Article Number (Market Facing Number) | 8WH9020-6JL01 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Explosion-tested version 'Ex e' (EF008498) | false |
| Region Specific PriceGroup / Headquarter Price Group | 12X / 1BT |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.09.2017 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityotherConfirmationMiscellaneous | General Product Approval |
Product Description
10 plug-in bridges of 3.5 mm blue. Cancelations and returns limited. Consult conditions.
