8WH9020-3AG00

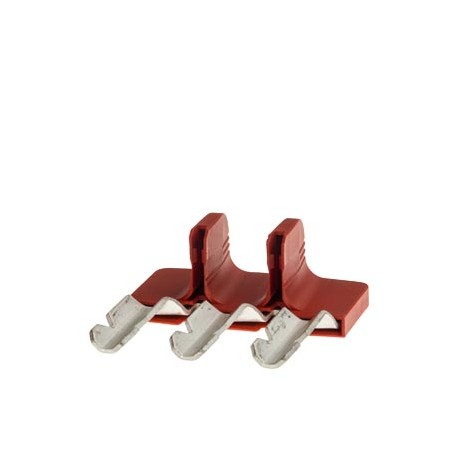

8WH9020-3AG00 SIEMENS jumper, 3-pole for iPo terminals 150 mm2
$0.00USD
4659 in stock
Key Specifications
:
EAN:4001869535692
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869535692 |
| UPC | Not available |
| ETIM | 5 |
| color | miscellaneous |
| width | 86 mm |
| UNSPSC | 15 |
| eClass | 6 |
| Group Code | P310 |
| net weight | 108 g |
| accessories | cross connector |
| Confirmation | |
| Metal Factor | None |
| Date5/16/2022 | |
| Product Group | 5558 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85369010 |
| Product family | Ordering Data Overview |
| Net Weight (kg) | 0,110 Kg |
| Model (EF000010) | Transverse connector |
| fastening method | pluggable |
| Colour (EF000007) | Other |
| Country of origin | Germany |
| LKZ_FDB/ CatalogID | LV10 |
| Packaging Quantity | 1 |
| product brand name | ALPHA |
| Packaging Dimension | 52,00 x 82,00 x 4,00 |
| Product Description | jumper, 3-pole for iPo terminals 150 mm2 |
| product designation | ALPHA FIX terminal blocks |
| Insulated (EF000019) | true |
| design of the product | Rail link |
| Minimum order quantity | 5 |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Rated voltage (EF000228) | 1500 |
| Export Control Regulations | AL : N / ECCN : N |
| Modular spacing (EF000394) | - |
| Mounting method (EF000003) | Pluggable |
| Rated current In (EF008250) | - |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| number of bridged terminals | 3 |
| product feature / insulated | Yes |
| Package size unit of measure | MM |
| With shock protection (EF008186) | true |
| product feature / touch protection | Yes |
| Number of bridged clamps (EF002550) | 3 |
| Article Number (Market Facing Number) | 8WH9020-3AG00 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Explosion-tested version 'Ex e' (EF008498) | false |
| Region Specific PriceGroup / Headquarter Price Group | 12X / 1BT |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.09.2016 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityotherConfirmationMiscellaneous | General Product Approval |
Product Description
COMBS 3POL FOR IPO TERMINAL BLOCK 150 mm2 ( ** ATTENTION : Price per 1 Unit and Minimum Quantity / Order Multiple 5 Units ** ). Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
