8WH6020-0AG01

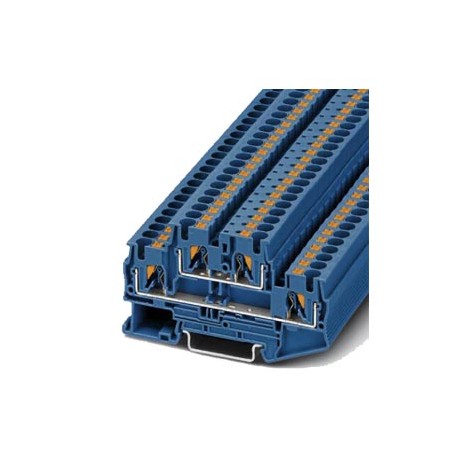

8WH6020-0AG01 SIEMENS Two-tier terminals 4 mm2, 6.2 mm wide blue
$0.00USD
3110 in stock
Key Specifications
:VersionClassificationeClass627-14-11-20eClass7.127-14-11-20eClass827-14-11-20eClass927-14-11-20eClass9.127-14-11-20ETIM5EC000897ETIM6EC000897ETIM7EC000897ETIM8EC000897UNSPSC1439-12-14-10UNSPSC1539-12-14-10
EAN:4001869447759
UPC:887621419813
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-14-11-20eClass7.127-14-11-20eClass827-14-11-20eClass927-14-11-20eClass9.127-14-11-20ETIM5EC000897ETIM6EC000897ETIM7EC000897ETIM8EC000897UNSPSC1439-12-14-10UNSPSC1539-12-14-10 | |
| EAN | 4001869447759 |
| UPC | 887621419813 |
| ETIM | 5 |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | P310 |
| Metal Factor | None |
| Product Group | 5731 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85369010 |
| Product family | iPo plug-in terminals |
| Net Weight (kg) | 0,016 Kg |
| Country of origin | Germany |
| Length (EF001438) | 83.5 |
| LKZ_FDB/ CatalogID | LV10.2 |
| Packaging Quantity | 1 |
| Packaging Dimension | 46,00 x 84,00 x 5,00 |
| Product Description | Two-tier terminals 4 mm2, 6.2 mm wide blue |
| Minimum order quantity | 50 |
| PE-function (EF002672) | false |
| Basic colour (EF002671) | Blue |
| Product Lifecycle (PLM) | PM300:Active Product |
| Rated voltage (EF000228) | 500 |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| Rated current In (EF008250) | 28.0 |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Connection position (EF008219) | Above |
| N function possible (EF002674) | true |
| Number of potentials (EF002670) | 2 |
| Width/grid dimension (EF002522) | 6.2 |
| Operating temperature (EF002393) | ['-', '55'] |
| Closing plate required (EF002525) | true |
| With test disconnector (EF002675) | false |
| With N-disconnect slide (EF002673) | false |
| Material insulation body (EF007543) | Thermoplastic |
| Article Number (Market Facing Number) | 8WH6020-0AG01 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Type of electrical connection 1 (EF002526) | Push-in clamp connection |
| Type of electrical connection 2 (EF002527) | Push-in clamp connection |
| Height at lowest possible mounting height (EF002523) | 47.5 |
| Region Specific PriceGroup / Headquarter Price Group | 12X / 1BT |
| Connectable conductor cross section solid-core (EF007337) | ['0.2', '6.0'] |
| Connectable conductor cross section multi-wired (EF007343) | ['0.2', '6.0'] |
| Compliance with the substance restrictions according to RoHS directive | Since: 15.08.2011 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| Inflammability class of insulation material according to with UL94 (EF002521) | V0 |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | ['0.25', '4.0'] |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | ['0.2', '4.0'] |
Product Description
BORNES IPO, TWO-STORY TERMINAL 4 MM2, 6.2 MM WIDE BLUE ( ** ATTENTION : Price per 1 Unit and Minimum Quantity / Multiplo of Order 50 Units ** ). Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
