8WH6004-0AG01

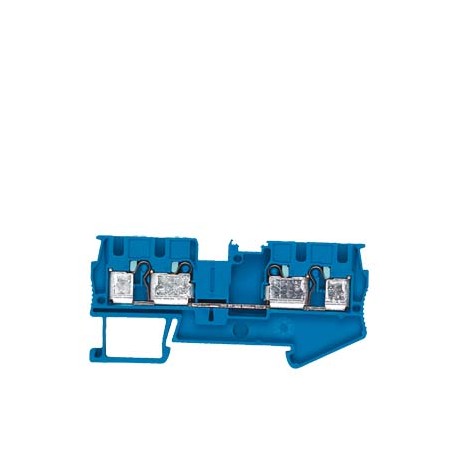

8WH6004-0AG01 SIEMENS Through-type terminals 4 mm2, 6.2 mm wide blue 4 clamping points
$0.00USD
4418 in stock
Key Specifications
:VersionClassificationeClass627-14-11-20eClass7.127-14-11-20eClass827-14-11-20eClass927-14-11-20eClass9.127-14-11-20ETIM5EC000897ETIM6EC000897ETIM7EC000897ETIM8EC000897UNSPSC1439-12-14-10UNSPSC1539-12-14-10
EAN:4001869447728
UPC:887621419783
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-14-11-20eClass7.127-14-11-20eClass827-14-11-20eClass927-14-11-20eClass9.127-14-11-20ETIM5EC000897ETIM6EC000897ETIM7EC000897ETIM8EC000897UNSPSC1439-12-14-10UNSPSC1539-12-14-10 | |
| EAN | 4001869447728 |
| UPC | 887621419783 |
| ETIM | 5 |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | P310 |
| Metal Factor | None |
| Product Group | 5731 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85369010 |
| Product family | iPo plug-in terminals |
| Net Weight (kg) | 0,013 Kg |
| Colour (EF000007) | Blue |
| Country of origin | Germany |
| Length (EF001438) | 77.0 |
| LKZ_FDB/ CatalogID | LV10.2 |
| Packaging Quantity | 1 |
| Packaging Dimension | 35,00 x 77,00 x 5,00 |
| Product Description | Through-type terminals 4 mm2, 6.2 mm wide blue 4 clamping points |
| Minimum order quantity | 50 |
| Product Lifecycle (PLM) | PM300:Active Product |
| Rated voltage (EF000228) | 800 |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| Number of levels (EF002659) | 1 |
| Rated current In (EF008250) | 32.0 |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Connection position (EF008219) | Above |
| Width/grid dimension (EF002522) | 6.2 |
| Operating temperature (EF002393) | ['-', '55'] |
| Closing plate required (EF002525) | true |
| Material insulation body (EF007543) | Thermoplastic |
| Article Number (Market Facing Number) | 8WH6004-0AG01 |
| Internally connected stages (EF002661) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Explosion-tested version 'Ex e' (EF008498) | false |
| Type of electrical connection 1 (EF002526) | Push-in clamp connection |
| Type of electrical connection 2 (EF002527) | Push-in clamp connection |
| Number of clamp positions per level (EF002660) | 4 |
| Height at lowest possible mounting height (EF002523) | 36.5 |
| Region Specific PriceGroup / Headquarter Price Group | 12X / 1BT |
| Connectable conductor cross section solid-core (EF007337) | ['0.2', '6.0'] |
| Connectable conductor cross section multi-wired (EF007343) | ['0.2', '6.0'] |
| Compliance with the substance restrictions according to RoHS directive | Since: 15.08.2011 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| Inflammability class of insulation material according to with UL94 (EF002521) | V0 |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | ['0.25', '4.0'] |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | ['0.2', '4.0'] |
Product Description
TERMINAL-PE 4 MM2, 6.2 MM WIDE BLUE 4-CONNECTION POINTS ( ** ATTENTION : Price per 1 Unit and Minimum Quantity / Order Multiple 50 Units ** ). Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
