8WH6003-0HE00

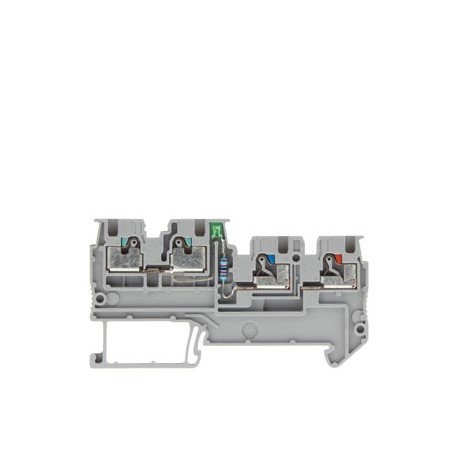

8WH6003-0HE00 SIEMENS Installation terminals 1.5 mm2 including PE for 3-wire
$0.00USD
4673 in stock
Key Specifications
:Confirmation
EAN:4001869552729
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4001869552729 |
| UPC | Not available |
| ETIM | 5 |
| color | grey |
| ● 1 | Plug-in terminal |
| ● 2 | Plug-in terminal |
| eClass | 6 |
| height | 41.5 mm |
| length | 74.4 mm |
| Group Code | P310 |
| ● maximum | 1.5 mm² |
| ● minimum | 0.14 mm² |
| Date5/8/2022 | |
| Metal Factor | None |
| Product Group | 5731 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85369010 |
| Product family | Ordering Data Overview |
| Net Weight (kg) | 0,009 Kg |
| fastening method | DIN rail 35 mm |
| ● disconnector | No |
| Colour (EF000007) | Grey |
| Country of origin | Poland |
| Length (EF001438) | 74.4 |
| product component | |
| ● PE connection | Yes |
| LKZ_FDB/ CatalogID | LV10 |
| Packaging Quantity | 1 |
| product brand name | Sentron |
| type of connection | |
| Packaging Dimension | 3,50 x 74,40 x 40,00 |
| Product Description | Installation terminals 1.5 mm2 including PE for 3-wire |
| insulation material | thermoplastic |
| product designation | Initiator terminals |
| design of the product | For 3-wire including PE |
| ● shield connection | Yes |
| Colour lamp (EF001402) | Other |
| Minimum order quantity | 50 |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● of the light source | Gray |
| General Product Approval | Declaration of Conformity |
| Rated voltage (EF000228) | 250 |
| terminal contact spacing | 3.5 mm |
| number of terminal levels | 3 |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| position / of the terminal | top |
| Number of levels (EF002659) | 3 |
| Rated current In (EF008250) | 13.5 |
| Standard lead time ex-works | 7 Day/Days |
| Surcharge for Raw Materials | None |
| Cross connectable (EF005717) | true |
| LED switching for (EF002537) | No |
| Package size unit of measure | MM |
| With PE connection (EF002534) | true |
| Connection position (EF008219) | Above |
| Disconnect function (EF006183) | false |
| ● required / end cover plate | No |
| Width/grid dimension (EF002522) | 3.5 |
| operating voltage / rated value | 250 V |
| Operating temperature (EF002393) | ['-', '-'] |
| Closing plate required (EF002525) | false |
| With shield connection (EF002535) | true |
| material / of the insulating body | Thermoplast |
| operational current / rated value | 13.5 A |
| product function / infeed function | No |
| Material insulation body (EF007543) | Thermoplastic |
| product feature / cross-connectable | Yes |
| Article Number (Market Facing Number) | 8WH6003-0HE00 |
| With power supply function (EF002536) | false |
| Internally connected stages (EF002661) | false |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ● with core end processing / maximum | 1.5 mm² |
| ● with core end processing / minimum | 0.14 mm² |
| combustibility class according to UL 94 | V2 |
| design of LED initiator/actuator terminal | No |
| height / with lowest-profile installation | 41.5 mm |
| ● without core end processing / maximum | 1.5 mm² |
| ● without core end processing / minimum | 0.14 mm² |
| Explosion-tested version 'Ex e' (EF008498) | false |
| Type of electrical connection 1 (EF002526) | Plug-in connection |
| Type of electrical connection 2 (EF002527) | Plug-in connection |
| connectable conductor cross-section / solid | |
| Number of clamp positions per level (EF002660) | - |
| connectable conductor cross-section / stranded | |
| Height at lowest possible mounting height (EF002523) | 41.5 |
| Region Specific PriceGroup / Headquarter Price Group | 12X / 1BT |
| connectable conductor cross-section / finely stranded | |
| design of terminal / terminal levels internally linked | No |
| Connectable conductor cross section solid-core (EF007337) | ['0.14', '1.5'] |
| Connectable conductor cross section multi-wired (EF007343) | ['0.14', '1.5'] |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.09.2017 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| Inflammability class of insulation material according to with UL94 (EF002521) | V2 |
| General Product ApprovalDeclaration of ConformityotherConfirmationMiscellaneous | General Product Approval |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | ['0.14', '1.5'] |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | ['0.14', '1.5'] |
Product Description
Detector terminal of 1.5 mm2 for 3 wires incl. PE. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
