8WH6001-0BH01

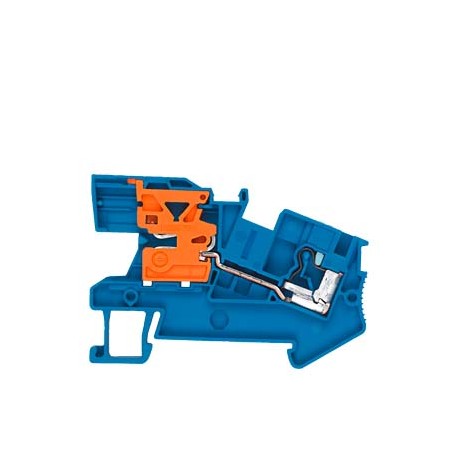

8WH6001-0BH01 SIEMENS INSTA through-type terminal 6 mm2, 8.2 mm width blue N disconnect
$0.00USD
3770 in stock
Key Specifications
:
EAN:4001869448039
UPC:887621419608
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869448039 |
| UPC | 887621419608 |
| ETIM | 5 |
| ● 1 | plug terminal connection |
| ● 2 | plug terminal connection |
| UNSPSC | 14 |
| eClass | 6 |
| length | 66 mm |
| Group Code | P310 |
| ● maximum | 10 mm² |
| ● minimum | 0.5 mm² |
| Confirmation | |
| Date5/6/2022 | |
| Metal Factor | None |
| Product Group | 5729 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85369010 |
| Product family | iPo installation terminals |
| Net Weight (kg) | 0,017 Kg |
| stripped length | 12 mm |
| fastening method | DIN rail 35 mm |
| Colour (EF000007) | Blue |
| Country of origin | Poland |
| Length (EF001438) | 66.0 |
| product component | |
| LKZ_FDB/ CatalogID | LV10.2 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| type of connection | |
| Packaging Dimension | 47,00 x 66,00 x 7,00 |
| Product Description | INSTA through-type terminal 6 mm2, 8.2 mm width blue N disconnect |
| Minimum order quantity | 50 |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Rated voltage (EF000228) | 400 |
| terminal contact spacing | 8 mm |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| Number of levels (EF002659) | 1 |
| Rated current In (EF008250) | 41.0 |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Connection position (EF008219) | Above |
| ● required / end cover plate | Yes |
| Width/grid dimension (EF002522) | 8.2 |
| operating voltage / rated value | 400 V |
| Operating temperature (EF002393) | ['-', '55'] |
| Closing plate required (EF002525) | true |
| material / of the insulating body | Thermoplastic |
| operational current / rated value | 41 A |
| Material insulation body (EF007543) | Thermoplastic |
| Article Number (Market Facing Number) | 8WH6001-0BH01 |
| Internally connected stages (EF002661) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| ● with core end processing / maximum | 6 mm² |
| ● with core end processing / minimum | 0.5 mm² |
| combustibility class according to UL 94 | V0 |
| height / with lowest-profile installation | 50 mm |
| ● without core end processing / maximum | 6 mm² |
| ● without core end processing / minimum | 0.5 mm² |
| Explosion-tested version 'Ex e' (EF008498) | false |
| Type of electrical connection 1 (EF002526) | Push-in clamp connection |
| Type of electrical connection 2 (EF002527) | Push-in clamp connection |
| connectable conductor cross-section / solid | |
| Number of clamp positions per level (EF002660) | 2 |
| connectable conductor cross-section / stranded | |
| Height at lowest possible mounting height (EF002523) | 50.0 |
| Region Specific PriceGroup / Headquarter Price Group | 12X / 1BT |
| connectable conductor cross-section / finely stranded | |
| Connectable conductor cross section solid-core (EF007337) | ['0.5', '10.0'] |
| Connectable conductor cross section multi-wired (EF007343) | ['0.5', '10.0'] |
| Compliance with the substance restrictions according to RoHS directive | Since: 15.08.2011 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| Inflammability class of insulation material according to with UL94 (EF002521) | V0 |
| General Product ApprovalDeclaration of ConformityotherConfirmationMiscellaneous | General Product Approval |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | ['0.5', '6.0'] |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | ['0.5', '6.0'] |
Product Description
STEP TERMINAL INSTAL N-DISCON 6 MM2, 8.2 MM WIDE BLUE DISCONNECTION ( ** ATTENTION : Price per 1 Unit and Minimum Quantity / Order Multiple 50 Units ** ). Cancelations and returns limited. Consult con
