8WH6000-0AQ01

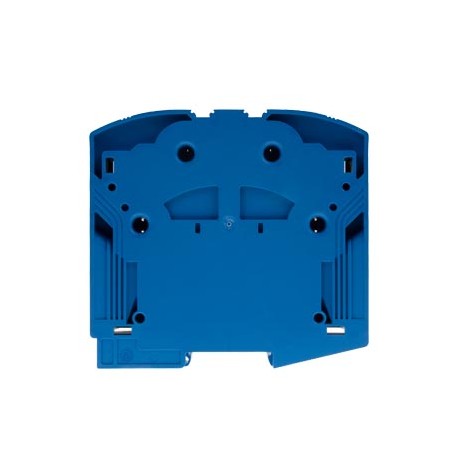

8WH6000-0AQ01 SIEMENS N through-type terminal 95mm2 iPo plug-in terminal blue
$0.00USD
3675 in stock
Key Specifications
:Confirmation
EAN:4001869533353
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4001869533353 |
| UPC | Not available |
| ETIM | 5 |
| color | blue |
| depth | 106 mm |
| ● 1 | plug terminal connection |
| ● 2 | plug terminal connection |
| UNSPSC | 15 |
| eClass | 6 |
| height | 108.7 mm |
| length | 105.5 mm |
| Group Code | P310 |
| net weight | 195 g |
| ● maximum | 95 mm² |
| ● minimum | 25 mm² |
| Metal Factor | None |
| Date5/11/2022 | |
| Product Group | 5731 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85369010 |
| Product family | iPo plug-in terminals |
| Net Weight (kg) | 0,200 Kg |
| stripped length | 40 mm |
| fastening method | others |
| Colour (EF000007) | Blue |
| Country of origin | Poland |
| Length (EF001438) | 105.5 |
| LKZ_FDB/ CatalogID | LV10 |
| Packaging Quantity | 1 |
| product brand name | ALPHA |
| type of connection | |
| Packaging Dimension | 52,00 x 82,00 x 4,00 |
| Product Description | N through-type terminal 95mm2 iPo plug-in terminal blue |
| product designation | ALPHA FIX terminal block |
| Minimum order quantity | 10 |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Rated voltage (EF000228) | 1500 |
| terminal contact spacing | 25 mm |
| number of terminal levels | 1 |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | Other |
| position / of the terminal | top |
| Rated current In (EF008250) | 232.0 |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Width/grid dimension (EF002522) | 25.0 |
| operating voltage / rated value | 1 500 V |
| Operating temperature (EF002393) | ['-25', '55'] |
| Suitable for N-busbar (EF002557) | Other |
| material / of the insulating body | Thermoplast |
| operational current / rated value | 232 A |
| Material insulation body (EF007543) | Thermoplastic |
| Connecting plate required (EF002528) | false |
| Number of clamp positions (EF000584) | 2 |
| Article Number (Market Facing Number) | 8WH6000-0AQ01 |
| Type of electric connection (EF003961) | Push-in clamp connection |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| ● with core end processing / maximum | 95 mm² |
| ● with core end processing / minimum | 25 mm² |
| combustibility class according to UL 94 | V0 |
| height / with lowest-profile installation | 108.7 mm |
| ● without core end processing / maximum | 95 mm² |
| ● without core end processing / minimum | 25 mm² |
| connectable conductor cross-section / solid | |
| connectable conductor cross-section / stranded | |
| number of terminal points / per terminal level | 2 |
| product component / required / end cover plate | No |
| Height at lowest possible mounting height (EF002523) | 108.7 |
| Region Specific PriceGroup / Headquarter Price Group | 12X / 1BT |
| connectable conductor cross-section / finely stranded | |
| design of terminal / terminal levels internally linked | No |
| Connectable conductor cross section solid-core (EF007337) | ['25.0', '95.0'] |
| Connectable conductor cross section multi-wired (EF007343) | ['25.0', '95.0'] |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.09.2016 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| Inflammability class of insulation material according to with UL94 (EF002521) | V0 |
| General Product ApprovalDeclaration of ConformityotherConfirmationMiscellaneous | General Product Approval |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | ['25.0', '95.0'] |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | ['25.0', '95.0'] |
Product Description
STEP TERMINAL N, 95mm2 PLUG-IN TYPE IPO BLUE (** ATTENTION: Price per 1 Unit and Minimum Quantity / Order Multiple 10 Units ** ). Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
