8WH3003-0AF01

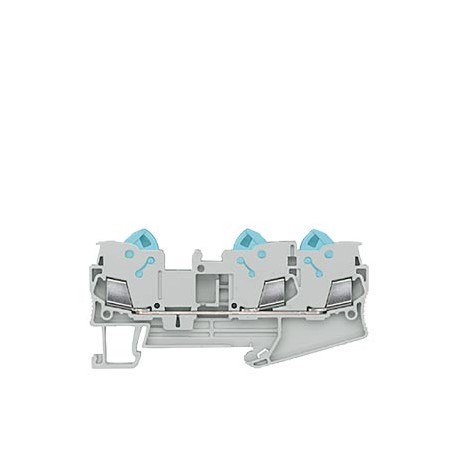

8WH3003-0AF01 SIEMENS Through-type terminals with quick-connect technology 3 connection points, Cross-sectio..
$0.00USD
3851 in stock
Key Specifications
:Value
EAN:4001869344973
UPC:040892560091
ETIM:4
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4001869344973 |
| UPC | 040892560091 |
| ETIM | 4 |
| Color | blue |
| ● 1 | insulation piercing connection |
| ● 2 | insulation piercing connection |
| UNSPSC | 14 |
| eClass | 6 |
| length | 82.5 mm |
| Group Code | P310 |
| net weight | 13 g |
| Price Group | 12X |
| ● maximum | 2.5 mm² |
| ● minimum | 2.5 mm² |
| Metal Factor | None |
| Mounting type | DIN rail 35 mm |
| Product Group | 5557 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85369010 |
| Product family | Not available |
| Net Weight (kg) | 0,013 Kg |
| Colour (EF000007) | Blue |
| Country of origin | China |
| Length (EF001438) | 82.5 |
| LKZ_FDB/ CatalogID | LV10.2 |
| Packaging Quantity | 1 |
| product brand name | ALPHA |
| Packaging Dimension | 42,00 x 83,00 x 6,00 |
| Product Description | Through-type terminals with quick-connect technology 3 connection points, Cross-section: 0.5-2.5 mm2, Width: 6.2mm, Color: blue |
| Product designation | ALPHA FIX terminal blocks |
| Minimum order quantity | 50 |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Rated voltage (EF000228) | 800 |
| Terminal contact spacing | 6.2 mm |
| Number of terminal levels | 1 |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| Position / of the terminal | top |
| Number of levels (EF002659) | 1 |
| Rated current In (EF008250) | 24.0 |
| Standard lead time ex-works | 7 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Type of electrical connection | |
| Connection position (EF008219) | Above |
| Product Dimensions (W x L x H) | Not available |
| Operating current / rated value | 24 A |
| Operating voltage / rated value | 800 V |
| Width/grid dimension (EF002522) | 6.2 |
| Operating temperature (EF002393) | ['-25', '55'] |
| Closing plate required (EF002525) | false |
| Material / of the insulating body | Other |
| Combustibility class acc. to UL 94 | V0 |
| Material insulation body (EF007543) | Other |
| Article Number (Market Facing Number) | 8WH3003-0AF01 |
| Ambient temperature / during operation | |
| Internally connected stages (EF002661) | false |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ● with core end processing / maximum | 2.5 mm² |
| ● with core end processing / minimum | 2.5 mm² |
| Height / with lowest-profile installation | 42.8 mm |
| ● without core end processing / maximum | 2.5 mm² |
| ● without core end processing / minimum | 2.5 mm² |
| Explosion-tested version 'Ex e' (EF008498) | false |
| Type of electrical connection 1 (EF002526) | Insulation displacement connection |
| Type of electrical connection 2 (EF002527) | Insulation displacement connection |
| connectable conductor cross-section / solid | |
| Connectable conductor cross-section / stranded | |
| Number of clamp positions per level (EF002660) | 3 |
| Number of terminal points / per terminal level | 3 |
| Product component / required / connection plate | No |
| Design tested acc. to type of protection / EEx e | No |
| Height at lowest possible mounting height (EF002523) | 42.8 |
| connectable conductor cross-section / finely stranded | |
| Design of terminal / Terminal levels internally linked | No |
| Connectable conductor cross section solid-core (EF007337) | ['2.5', '2.5'] |
| Connectable conductor cross section multi-wired (EF007343) | ['2.5', '2.5'] |
| General Product ApprovalDeclaration of ConformityotherMiscellaneous | General Product Approval |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.04.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| Inflammability class of insulation material according to with UL94 (EF002521) | V0 |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | ['2.5', '2.5'] |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | ['2.5', '2.5'] |
