8WH2520-0AF00

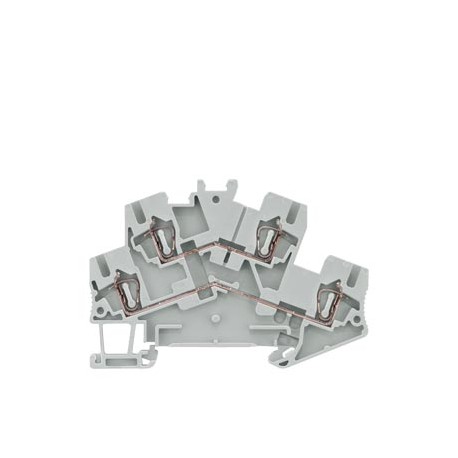

8WH2520-0AF00 SIEMENS Two-tier terminals with spring-loaded connection, Compact design, Cross-section: 0.08-..
$0.00USD
3184 in stock
Key Specifications
:VersionClassificationeClass627-14-11-20eClass7.127-14-11-20eClass827-14-11-20eClass927-14-11-20eClass9.127-14-11-20ETIM5EC000897ETIM6EC000897ETIM7EC000897ETIM8EC000897UNSPSC1439-12-14-10UNSPSC1539-12-14-10
EAN:4001869348469
UPC:040892559910
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-14-11-20eClass7.127-14-11-20eClass827-14-11-20eClass927-14-11-20eClass9.127-14-11-20ETIM5EC000897ETIM6EC000897ETIM7EC000897ETIM8EC000897UNSPSC1439-12-14-10UNSPSC1539-12-14-10 | |
| EAN | 4001869348469 |
| UPC | 040892559910 |
| ETIM | 5 |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | P310 |
| Metal Factor | None |
| Product Group | 5556 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85369010 |
| Product family | 8WH terminals |
| Net Weight (kg) | 0,012 Kg |
| Colour (EF000007) | Grey |
| Country of origin | Germany |
| Length (EF001438) | 78.0 |
| LKZ_FDB/ CatalogID | LV10.2 |
| Packaging Quantity | 1 |
| Packaging Dimension | 55,00 x 80,00 x 3,00 |
| Product Description | Two-tier terminals with spring-loaded connection, Compact design, Cross-section: 0.08-2.5 mm2, Width: 5.2mm, Color: gray |
| Minimum order quantity | 50 |
| Product Lifecycle (PLM) | PM300:Active Product |
| Rated voltage (EF000228) | 500 |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| Number of levels (EF002659) | 2 |
| Rated current In (EF008250) | 26.0 |
| Standard lead time ex-works | 7 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Connection position (EF008219) | Above |
| Width/grid dimension (EF002522) | 5.2 |
| Operating temperature (EF002393) | ['-25', '55'] |
| Closing plate required (EF002525) | false |
| Material insulation body (EF007543) | Other |
| Article Number (Market Facing Number) | 8WH2520-0AF00 |
| Internally connected stages (EF002661) | false |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Explosion-tested version 'Ex e' (EF008498) | false |
| Type of electrical connection 1 (EF002526) | Spring clamp connection |
| Type of electrical connection 2 (EF002527) | Spring clamp connection |
| Number of clamp positions per level (EF002660) | 2 |
| Height at lowest possible mounting height (EF002523) | 54.5 |
| Region Specific PriceGroup / Headquarter Price Group | 12X / 1BT |
| Connectable conductor cross section solid-core (EF007337) | ['4.0', '4.0'] |
| Connectable conductor cross section multi-wired (EF007343) | ['4.0', '4.0'] |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.04.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| Inflammability class of insulation material according to with UL94 (EF002521) | V0 |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | ['2.5', '2.5'] |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | ['2.5', '2.5'] |
Product Description
Spring connection two-story terminal, compact design, section: 0.08 - 2.5 mm2, width: 5.2 mm, color: gray ( ** ATTENTION : Price per 1 Unit and Minimum Quantity / Multiplo order 50 Units ** ). Cancela
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
