8WH2000-0AE06

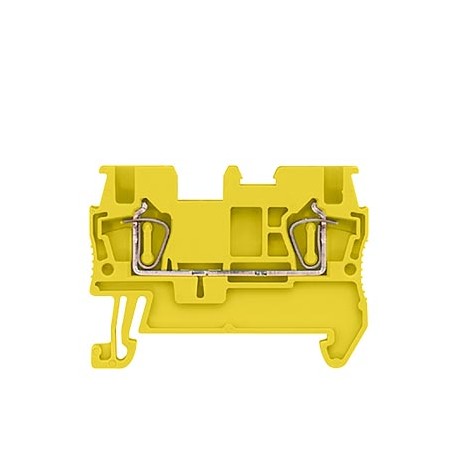

8WH2000-0AE06 SIEMENS Through-type terminals with spring-loaded connection, Cross-section: 1.5 mm2, Width: 4..
$0.00USD
3833 in stock
Key Specifications
:Confirmation
EAN:4001869368955
UPC:754554944661
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4001869368955 |
| UPC | 754554944661 |
| ETIM | 5 |
| color | yellow |
| ● 1 | spring-loaded terminal |
| ● 2 | spring-loaded terminal |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | P310 |
| net weight | 6 g |
| ● maximum | 1.5 mm² |
| ● minimum | 1.5 mm² |
| Metal Factor | None |
| Date5/14/2022 | |
| Product Group | 5556 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85369010 |
| Product family | 8WH terminals |
| Net Weight (kg) | 0,005 Kg |
| stripped length | 10 mm |
| fastening method | DIN rail 35 mm |
| Colour (EF000007) | Yellow |
| Country of origin | Germany |
| Length (EF001438) | - |
| LKZ_FDB/ CatalogID | LV10.2 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| type of connection | |
| Packaging Dimension | 32,00 x 50,00 x 3,00 |
| Product Description | Through-type terminals with spring-loaded connection, Cross-section: 1.5 mm2, Width: 4.2mm, Color: yellow |
| product designation | ALPHA FIX terminal blocks |
| Minimum order quantity | 50 |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Rated voltage (EF000228) | 500 |
| terminal contact spacing | 4 mm |
| number of terminal levels | 1 |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| position / of the terminal | top |
| Number of levels (EF002659) | 1 |
| Rated current In (EF008250) | 17.5 |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Connection position (EF008219) | Above |
| Width/grid dimension (EF002522) | 4.2 |
| operating voltage / rated value | 500 V |
| Operating temperature (EF002393) | ['-25', '55'] |
| Closing plate required (EF002525) | false |
| material / of the insulating body | Other |
| operational current / rated value | 18 A |
| Material insulation body (EF007543) | Other |
| Article Number (Market Facing Number) | 8WH2000-0AE06 |
| Internally connected stages (EF002661) | false |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| ● with core end processing / maximum | 2 mm² |
| ● with core end processing / minimum | 1.5 mm² |
| combustibility class according to UL 94 | V0 |
| ● without core end processing / maximum | 1.5 mm² |
| ● without core end processing / minimum | 1.5 mm² |
| Explosion-tested version 'Ex e' (EF008498) | false |
| Type of electrical connection 1 (EF002526) | Spring clamp connection |
| Type of electrical connection 2 (EF002527) | Spring clamp connection |
| connectable conductor cross-section / solid | |
| Number of clamp positions per level (EF002660) | 2 |
| connectable conductor cross-section / stranded | |
| number of terminal points / per terminal level | 2 |
| product component / required / end cover plate | No |
| Height at lowest possible mounting height (EF002523) | - |
| Region Specific PriceGroup / Headquarter Price Group | 12X / 1BT |
| connectable conductor cross-section / finely stranded | |
| design of terminal / terminal levels internally linked | No |
| Connectable conductor cross section solid-core (EF007337) | ['1.5', '1.5'] |
| Connectable conductor cross section multi-wired (EF007343) | ['1.5', '1.5'] |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2007 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| Inflammability class of insulation material according to with UL94 (EF002521) | V0 |
| General Product ApprovalDeclaration of ConformityotherConfirmationMiscellaneous | General Product Approval |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | ['1.5', '1.5'] |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | ['1.5', '1.5'] |
Product Description
PASSAGE TERMINAL WITH SPRING CONNECTION, SECTION: 1.5 SQMM, WIDTH: 4.2 MM, COLOR: YELLOW ( ** ATTENTION : Price per 1 Unit and Minimum Quantity / Order Multiple 50 Units ** ). Cancelations and returns
