8WD5320-5DF

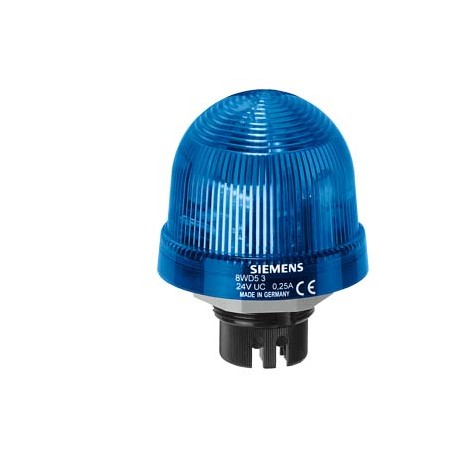

8WD5320-5DF SIEMENS Integrated signal lamp, rotating light, with integrated LED, blue, 24 V AC/DC, Diameter ..
$0.00USD
4226 in stock
Key Specifications
:VersionClassificationeClass627-14-32-90eClass7.127-14-32-20eClass827-14-32-20eClass927-14-32-20eClass9.127-14-32-20ETIM5EC001341ETIM6EC001341ETIM7EC001341ETIM8EC001341IDEA44766UNSPSC1539-12-15-34
EAN:4011209919969
UPC:804766894107
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-14-32-90eClass7.127-14-32-20eClass827-14-32-20eClass927-14-32-20eClass9.127-14-32-20ETIM5EC001341ETIM6EC001341ETIM7EC001341ETIM8EC001341IDEA44766UNSPSC1539-12-15-34 | |
| EAN | 4011209919969 |
| UPC | 804766894107 |
| ETIM | 5 |
| IDEA | 4 |
| color | blue |
| depth | 31 mm |
| speed | 120 1/min |
| width | 75 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 66 mm |
| material | PC; PC/ABS; PA |
| Group Code | R711 |
| Confirmation | |
| Metal Factor | None |
| Date5/10/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Product Group | 5833 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85318070 |
| Product family | 8WD53 integrated signal lamps, 70 mm diameter |
| last modified: | 1/12/2021 |
| Net Weight (kg) | 0,142 Kg |
| light intensity | 2.7 cd |
| Power (EF000076) | - |
| fastening method | Bayonet / flush mounting |
| Country of origin | Germany |
| Optics (EF002756) | - |
| operating voltage | |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| Packaging Dimension | 80,00 x 79,00 x 106,00 |
| Product Description | Integrated signal lamp, rotating light, with integrated LED, blue, 24 V AC/DC, Diameter 70 mm |
| product designation | Rotating light element |
| protection class IP | IP65 |
| service life of LED | 100 000 h |
| Lamp type (EF002423) | LED |
| type of light source | LED |
| Lamp holder (EF000048) | Other |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● 1 at DC rated value | 24 V |
| General Product Approval | EMC |
| consumed current maximum | 40 mA |
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Nominal voltage (EF000002) | - |
| Type of current (EF000143) | AC/DC |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| design of the optical signal | rotating light |
| type of electrical connection | screw-type terminals |
| Colour of lamp hood (EF002749) | / blue |
| product component light source | Yes |
| ● 1 at AC at 50 Hz rated value | 24 V |
| ● 1 at AC at 60 Hz rated value | 24 V |
| Electricity consumption (EF000587) | 0.04 |
| Degree of protection (IP) (EF005474) | IP65 |
| ambient temperature during operation | -20 ... +50 °C |
| Article Number (Market Facing Number) | 8WD5320-5DF |
| Degree of protection (NEMA) (EF011959) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| reference code according to IEC 81346-2 | P |
| type of voltage of the operating voltage | AC/DC |
| outer diameter of the signal column element | 75 mm |
| Region Specific PriceGroup / Headquarter Price Group | 41J / 41J |
| relative negative tolerance of the operating voltage | -10 % |
| relative positive tolerance of the operating voltage | 10 % |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| General Product ApprovalEMCDeclaration of ConformityConfirmationUK Declaration of ConformityotherConfirmation | General Product Approval |
