8WD4450-0FA

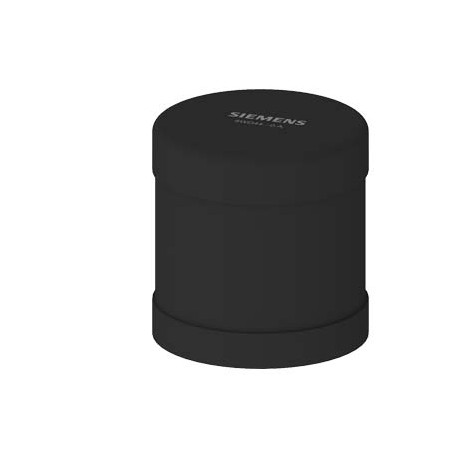

8WD4450-0FA SIEMENS Buzzer element, continuous tone or pulsating, adjustable, 85 dB, black, 230 V AC, diamet..
$0.00USD
4880 in stock
Key Specifications
:VersionClassificationeClass627-37-12-37eClass7.127-37-12-37eClass827-37-12-37eClass927-37-12-37eClass9.127-37-12-37ETIM5EC001261ETIM6EC001261ETIM7EC001261ETIM8EC001261IDEA44766UNSPSC1439-12-15-34UNSPSC1539-12-15-34
EAN:4011209497443
UPC:754554781334
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-37-12-37eClass7.127-37-12-37eClass827-37-12-37eClass927-37-12-37eClass9.127-37-12-37ETIM5EC001261ETIM6EC001261ETIM7EC001261ETIM8EC001261IDEA44766UNSPSC1439-12-15-34UNSPSC1539-12-15-34 | |
| EAN | 4011209497443 |
| UPC | 754554781334 |
| ETIM | 5 |
| IDEA | 4 |
| color | black |
| width | 70 mm |
| ● 1 | 1.75 kHz |
| UNSPSC | 14 |
| eClass | 6 |
| height | 72 mm |
| material | PC |
| Group Code | R711 |
| Confirmation | |
| Date5/8/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | None |
| Product Group | 5833 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85318070 |
| Product family | 8WD44 signaling columns, 70 mm diameter |
| last modified: | 12/23/2020 |
| loudness level | 85 dB |
| reference code | |
| tone frequency | |
| Net Weight (kg) | 0,090 Kg |
| fastening method | Bayonet |
| Colour (EF000007) | Black |
| Country of origin | Germany |
| operating voltage | |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| Function (EF000030) | Continuous tone/pulse tone |
| Loudness (EF000144) | 85 |
| Packaging Dimension | 76,00 x 74,00 x 69,00 |
| Product Description | Buzzer element, continuous tone or pulsating, adjustable, 85 dB, black, 230 V AC, diameter 70 mm |
| product designation | Buzzer element |
| protection class IP | IP65 |
| Product Lifecycle (PLM) | PM300:Active Product |
| Voltage type (EF000187) | AC / AC |
| type of acoustic signal | continuous tone / pulse tone |
| General Product Approval | EMC |
| consumed current maximum | 25 mA |
| Outer diameter (EF000015) | 70.0 |
| Export Control Regulations | AL : N / ECCN : N |
| Tone adjustable (EF005920) | true |
| Standard lead time ex-works | 1 Day/Days |
| Surcharge for Raw Materials | None |
| ● according to EN 61346-2 | P |
| Package size unit of measure | MM |
| ● according to IEC 81346-2 | P |
| ● 1 at AC at 50 Hz rated value | 230 V |
| ● 1 at AC at 60 Hz rated value | 230 V |
| Operating voltage at DC (EF008208) | ['-', '-'] |
| tone frequency of alternating tone | 1.75 ... 1.75 kHz |
| Degree of protection (IP) (EF005474) | IP65 |
| ambient temperature during operation | -20 ... +50 °C |
| Article Number (Market Facing Number) | 8WD4450-0FA |
| Degree of protection (NEMA) (EF011959) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| service life of acoustic signal device | 5 000 h |
| Operating voltage at AC 50 Hz (EF008206) | ['-', '-'] |
| Operating voltage at AC 60 Hz (EF008207) | ['-', '-'] |
| type of voltage of the operating voltage | AC |
| outer diameter of the signal column element | 70 mm |
| product function adjustable acoustic signal | Yes |
| Region Specific PriceGroup / Headquarter Price Group | 41J / 41J |
| relative negative tolerance of the operating voltage | -10 % |
| relative positive tolerance of the operating voltage | 10 % |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead titanium zircon... CAS-No. 12626-81-2 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead titanium zirconium oxideBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| General Product ApprovalEMCDeclaration of ConformityConfirmationUK Declaration of ConformityotherConfirmation | General Product Approval |
