8WD4440-0CE

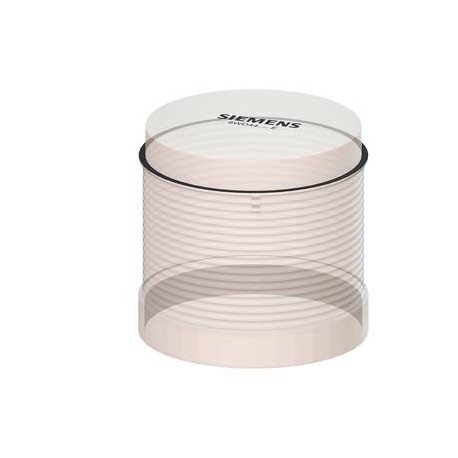

8WD4440-0CE SIEMENS Single-flash light element, w. built-in electronic flash, clear, 115 V AC, Diameter 70 mm
$0.00USD
4450 in stock
Key Specifications
:VersionClassificationeClass627-37-12-20eClass7.127-37-12-20eClass827-37-12-20eClass927-37-12-20eClass9.127-37-12-20ETIM5EC000232ETIM6EC000232ETIM7EC000232ETIM8EC000232IDEA44766UNSPSC1439-12-15-34UNSPSC1539-12-15-34
EAN:4011209497146
UPC:754554781020
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-37-12-20eClass7.127-37-12-20eClass827-37-12-20eClass927-37-12-20eClass9.127-37-12-20ETIM5EC000232ETIM6EC000232ETIM7EC000232ETIM8EC000232IDEA44766UNSPSC1439-12-15-34UNSPSC1539-12-15-34 | |
| EAN | 4011209497146 |
| UPC | 754554781020 |
| ETIM | 5 |
| IDEA | 4 |
| color | clear |
| width | 70 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 65.5 mm |
| material | PC |
| Group Code | R711 |
| Confirmation | |
| Metal Factor | None |
| Date5/13/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Product Group | 5833 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85318070 |
| Product family | 8WD44 signaling columns, 70 mm diameter |
| last modified: | 12/23/2020 |
| reference code | |
| Net Weight (kg) | 0,088 Kg |
| flash frequency | 1 Hz |
| light intensity | 32 098 cd |
| fastening method | Bayonet |
| Colour (EF000007) | Clear |
| Country of origin | Germany |
| operating voltage | |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| Function (EF000030) | Flash light |
| Packaging Dimension | 76,00 x 74,00 x 69,00 |
| Product Description | Single-flash light element, w. built-in electronic flash, clear, 115 V AC, Diameter 70 mm |
| product designation | Flashlight element |
| protection class IP | IP65 |
| Lamp type (EF002423) | Xenon |
| type of light source | Xenon gas discharge lamp |
| design of the product | including light sources |
| Product Lifecycle (PLM) | PM300:Active Product |
| Voltage type (EF000187) | AC |
| General Product Approval | EMC |
| Colour housing (EF000136) | Other |
| Outer diameter (EF000015) | 70.0 |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 20 Day/Days |
| Surcharge for Raw Materials | None |
| ● according to EN 61346-2 | P |
| Package size unit of measure | MM |
| design of the optical signal | flash light |
| ● according to IEC 81346-2 | P |
| product component light source | Yes |
| ● 1 at AC at 50 Hz rated value | 115 V |
| ● 1 at AC at 60 Hz rated value | 115 V |
| Operating voltage at DC (EF008208) | ['-', '-'] |
| number of flashes of light element | 4 000 000 |
| Degree of protection (IP) (EF005474) | IP65 |
| ambient temperature during operation | -20 ... +50 °C |
| Article Number (Market Facing Number) | 8WD4440-0CE |
| Degree of protection (NEMA) (EF011959) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Operating voltage at AC 50 Hz (EF008206) | ['-', '-'] |
| Operating voltage at AC 60 Hz (EF008207) | ['-', '-'] |
| type of voltage of the operating voltage | AC |
| outer diameter of the signal column element | 70 mm |
| Region Specific PriceGroup / Headquarter Price Group | 41J / 41J |
| relative negative tolerance of the operating voltage | -10 % |
| relative positive tolerance of the operating voltage | 10 % |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| General Product ApprovalEMCDeclaration of ConformityConfirmationUK Declaration of ConformityotherConfirmation | General Product Approval |
