8WD4428-0BF

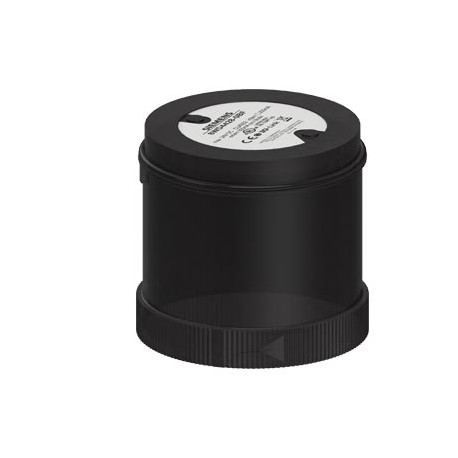

8WD4428-0BF SIEMENS IO-Link adapter element, black, for 5 signaling elements, 24 V DC, diameter 70 mm
$0.00USD
3941 in stock
Key Specifications
:VersionClassificationeClass627-37-12-32eClass7.127-37-12-32eClass827-37-12-32eClass927-37-12-32eClass9.127-37-12-32ETIM5EC001152ETIM6EC001152ETIM7EC001152ETIM8EC001152IDEA44771UNSPSC1539-12-15-44
EAN:4047621064574
UPC:804766815836
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-37-12-32eClass7.127-37-12-32eClass827-37-12-32eClass927-37-12-32eClass9.127-37-12-32ETIM5EC001152ETIM6EC001152ETIM7EC001152ETIM8EC001152IDEA44771UNSPSC1539-12-15-44 | |
| EAN | 4047621064574 |
| UPC | 804766815836 |
| ETIM | 5 |
| IDEA | 4 |
| color | black |
| UNSPSC | 15 |
| eClass | 6 |
| height | 66 mm |
| material | PC |
| Group Code | R711 |
| data volume | |
| Date5/4/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | None |
| Product Group | 5833 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85318070 |
| Product family | 8WD44 signaling columns, 70 mm diameter |
| last modified: | 12/23/2020 |
| Net Weight (kg) | 0,081 Kg |
| fastening method | Bayonet |
| Country of origin | Germany |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| ● safety-related | 0 |
| Packaging Dimension | 75,00 x 74,00 x 78,00 |
| Product Description | IO-Link adapter element, black, for 5 signaling elements, 24 V DC, diameter 70 mm |
| degree of pollution | 3 |
| product designation | IO-Link adapter element |
| protection class IP | IP65 |
| ● IO-Link protocol | Yes |
| IO-Link transfer rate | COM2 (38,4 kBaud) |
| protocol is supported | |
| Product Lifecycle (PLM) | PM300:Active Product |
| consumed current maximum | 6 mA |
| number of digital inputs | 0 |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Substance Prohibitance (Date) | 07/01/2006 |
| number of digital inputs/outputs | 0 |
| ambient temperature during operation | -20 ... +50 °C |
| Article Number (Market Facing Number) | 8WD4428-0BF |
| operating voltage 1 at DC rated value | 24 V |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| reference code according to IEC 81346-2 | B |
| type of voltage of the operating voltage | DC |
| outer diameter of the signal column element | 70 mm |
| type of voltage supply via input/output link master | Yes |
| Region Specific PriceGroup / Headquarter Price Group | 41J / 41J |
| relative negative tolerance of the operating voltage | -15 % |
| relative positive tolerance of the operating voltage | 10 % |
| point-to-point cycle time between master and IO-Link device minimum | 10 ms |
| ● of the address range of the inputs with cyclical transfer total | 3 byte |
| ● of the address range of the outputs with cyclical transfer total | 1 byte |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
Product Description
IO-Link module, black, for 5 signaling elements, 24 V DC, 70 mm diameter
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):
