In Stock Hot Product
8WD4408-0AD

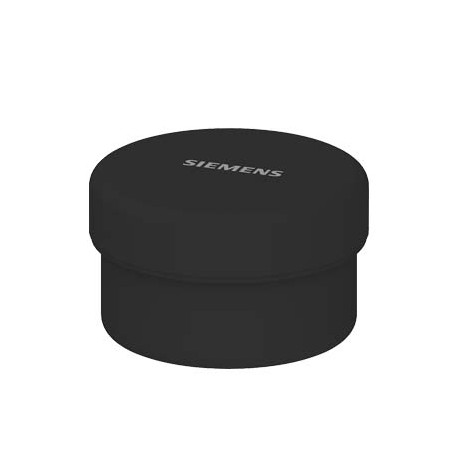

8WD4408-0AD SIEMENS Connection element, with end cover, black, for pipe mounting, with spring-type terminal,
$0.00USD
4778 in stock
Key Specifications
:VersionClassificationeClass627-37-12-32eClass7.127-37-12-32eClass827-37-12-32eClass927-37-12-32eClass9.127-37-12-32ETIM5EC001152ETIM6EC001152ETIM7EC001152ETIM8EC001152IDEA44771UNSPSC1439-12-15-21UNSPSC1539-12-15-44
EAN:4011209498495
UPC:754554781402
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-37-12-32eClass7.127-37-12-32eClass827-37-12-32eClass927-37-12-32eClass9.127-37-12-32ETIM5EC001152ETIM6EC001152ETIM7EC001152ETIM8EC001152IDEA44771UNSPSC1439-12-15-21UNSPSC1539-12-15-44 | |
| EAN | 4011209498495 |
| UPC | 754554781402 |
| ETIM | 5 |
| IDEA | 4 |
| color | black |
| width | 70 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 42.5 mm |
| material | PA |
| Group Code | R711 |
| Confirmation | |
| Date5/6/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | None |
| Product Group | 5833 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85319000 |
| Product family | 8WD44 signaling columns, 70 mm diameter |
| last modified: | 12/23/2020 |
| reference code | |
| Net Weight (kg) | 0,111 Kg |
| fastening method | mounting on pipes |
| Colour (EF000007) | Black |
| Country of origin | Germany |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| Packaging Dimension | 76,00 x 74,00 x 69,00 |
| Product Description | Connection element, with end cover, black, for pipe mounting, with spring-type terminal, |
| product designation | Connection element |
| protection class IP | IP65 |
| design of the product | for mounting on pipes |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | EMC |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 1 Day/Days |
| Surcharge for Raw Materials | None |
| ● according to EN 61346-2 | X |
| Package size unit of measure | MM |
| ● according to IEC 81346-2 | X |
| type of electrical connection | spring-loaded terminals |
| Tube mounting possible (EF001668) | false |
| Floor mounting possible (EF001670) | FALSE |
| Bracket mounting possible (EF001669) | false |
| Suitable for AS interface (EF005768) | - |
| ambient temperature during operation | -20 ... +50 °C |
| Article Number (Market Facing Number) | 8WD4408-0AD |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| outer diameter of the signal column element | 70 mm |
| Connection type auxiliary circuit (EF006820) | Spring clamp connection |
| Region Specific PriceGroup / Headquarter Price Group | 41J / 41J |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalEMCDeclaration of ConformityConfirmationUK Declaration of ConformityotherConfirmation | General Product Approval |
