8WD4408-0AA

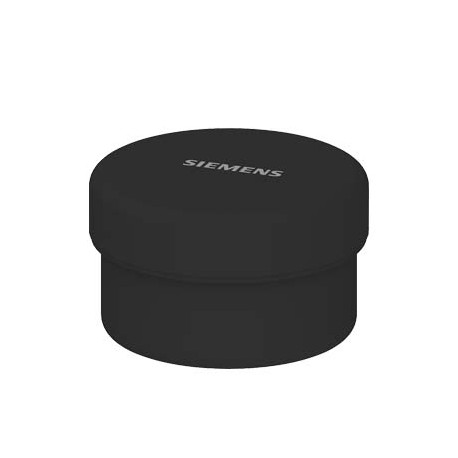

8WD4408-0AA SIEMENS Connection element, with end cover, black, for pipe mounting, with screw terminal,
$0.00USD
4537 in stock
Key Specifications
:VersionClassificationeClass627-37-12-32eClass7.127-37-12-32eClass827-37-12-32eClass927-37-12-32eClass9.127-37-12-32ETIM5EC001152ETIM6EC001152ETIM7EC001152ETIM8EC001152IDEA44771UNSPSC1432-15-15-02UNSPSC1539-12-15-44
EAN:4011209498464
UPC:754554781389
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-37-12-32eClass7.127-37-12-32eClass827-37-12-32eClass927-37-12-32eClass9.127-37-12-32ETIM5EC001152ETIM6EC001152ETIM7EC001152ETIM8EC001152IDEA44771UNSPSC1432-15-15-02UNSPSC1539-12-15-44 | |
| EAN | 4011209498464 |
| UPC | 754554781389 |
| ETIM | 5 |
| IDEA | 4 |
| color | black |
| width | 70 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 42.5 mm |
| material | PA |
| Group Code | R711 |
| Confirmation | |
| Metal Factor | None |
| Date5/11/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Product Group | 5833 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85319000 |
| Product family | 8WD44 signaling columns, 70 mm diameter |
| last modified: | 12/23/2020 |
| reference code | |
| Net Weight (kg) | 0,119 Kg |
| fastening method | mounting on pipes |
| Colour (EF000007) | Black |
| Country of origin | Germany |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| Packaging Dimension | 76,00 x 74,00 x 69,00 |
| Product Description | Connection element, with end cover, black, for pipe mounting, with screw terminal, |
| product designation | Connection element |
| protection class IP | IP65 |
| design of the product | for mounting on pipes |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | EMC |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 1 Day/Days |
| Surcharge for Raw Materials | None |
| ● according to EN 61346-2 | X |
| Package size unit of measure | MM |
| ● according to IEC 81346-2 | X |
| type of electrical connection | screw-type terminals |
| Tube mounting possible (EF001668) | false |
| Floor mounting possible (EF001670) | FALSE |
| Bracket mounting possible (EF001669) | false |
| Suitable for AS interface (EF005768) | - |
| ambient temperature during operation | -20 ... +50 °C |
| Article Number (Market Facing Number) | 8WD4408-0AA |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| outer diameter of the signal column element | 70 mm |
| tightening torque with screw-type terminals | 0.4 N·m |
| Connection type auxiliary circuit (EF006820) | Screw connection |
| Region Specific PriceGroup / Headquarter Price Group | 41J / 41J |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| General Product ApprovalEMCDeclaration of ConformityConfirmationUK Declaration of ConformityotherConfirmation | General Product Approval |
